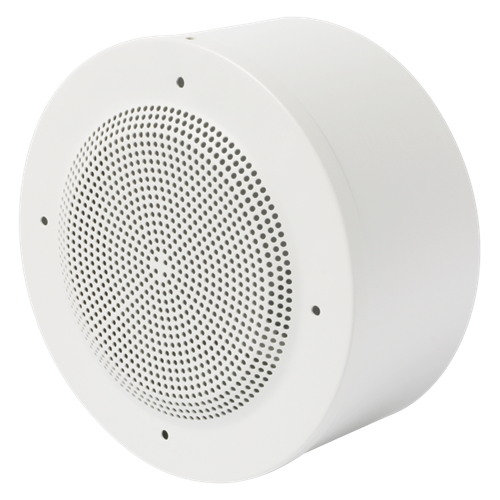

Compact Aluminum Baffle for Wall or Ceiling Use 8 inch - White

410-8W

  • HYFIDROPHOBIC_OPTIONAL
    DESCRIPTION

    Compact unidirectional aluminum baffle/enclosure with one-piece grille provides long lasting service indoors or out.

    Sturdy assembly features a spun .038 aluminum housing and mounts easily to walls, ceilings, or to 4" (102mm) octagon E.O. boxes (manufactured by others).

    Model 410-8W mount a standard 8" (203mm) speaker (will not work with 8W transformers).

    Baffle interior is undercoated and patchjute lined to prevent mechanical and acoustical resonance. Assembly is finished in textured white (W) epoxy.


    Features
    • Attractive, Non-Rusting Aluminum Construction
    • Ideal for Corridor Applications Where Surface Mounting Space is Limited
    • Unidirectional Model 8" (203mm) Loudspeakers

    SPECIFICATIONS
    Depth 4.4375" (112.7mm)
    Diameter 9.3125" (236.5mm)
    Shipping Weight 2.00 lbs (0.91 kgs)
    Speaker Size 8

    SUPPORT FILES

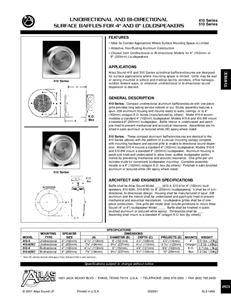

    Unidirectional and Bi-Directional Surface Baffles for 4 Unidirectional and Bi-Directional Surface Baffles for 4" and 8" Loudspeakers (1 page)
