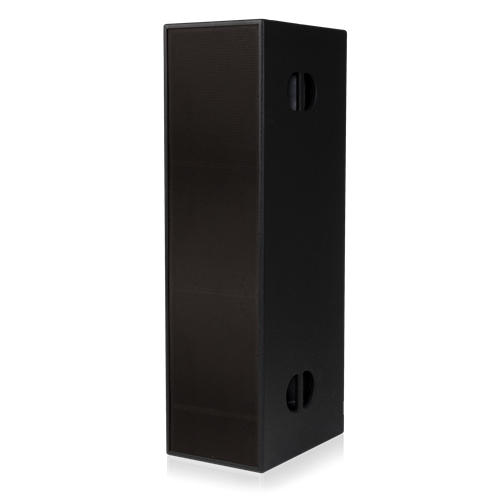

Active Modular Subwoofer Speaker System

EMW410A-B

  • BAA
  • TAA
  • Onboard DSP
  • Powered
    DESCRIPTION

    The Atlas A-Line EMW410A-B line array system is a 1000W RMS powered subwoofer speaker system that is designed for use in speech and music reproduction applications for medium to large venues like houses of worship, theaters, or halls in conjunction with the EM806A-B full range speaker system.  The unit incorporates four 10" subwoofers with an integrated class D amplifier capable of delivering 1000W RMS power with pre-configured DSP for optimal sound reproduction. The cabinet design has integrated carry handles for easy transport and is finished in heavy duty black Duracoat™.  The EMW410A-B is designed to be used with the EM806A-B full range speaker system for a truly unmatched 3-way sound experience.


    Features

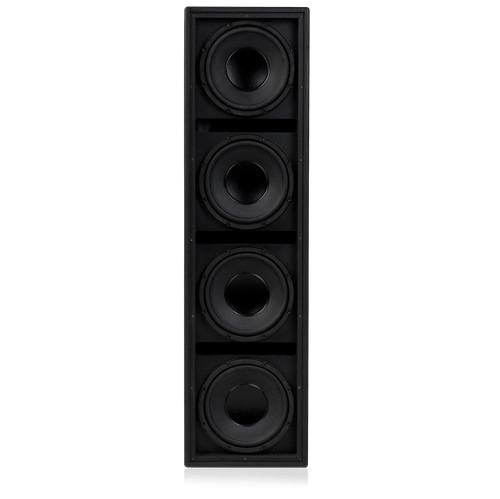

    • Four 10" Subwoofers
    • Integrated 1000W Class D Amplifier
    • Integrated Carrying Handles for Easy Transport
    • Heavy Duty Duracoat™ Finish

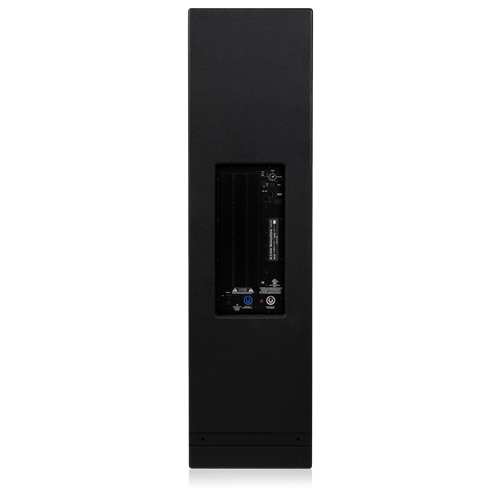

    • M&F XLR & I/O PowerCON™ Connectors

    SPECIFICATIONS
    Midrange RMS Power 1000 Watts
    High Frequency RMS Power 500 Watts
    Crossover Frequency 90Hz/125Hz
    MAX SPL 128 dB
    Sensitivity 100 dB
    Dispersion Omni
    Height 48.8" (123.95 cm)
    Width 13.1" (33.27 cm)
    Depth 19.0" (48.26 cm)
    Weight 97 lbs (44.00 kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    EMMA_410A EASE DATA EMMA_410A EASE DATA
    EMW410A-B Datasheet (1 page) EMW410A-B Datasheet (1 page)
    ALA004558 EMMA2K-B Owner's Manual (12 pages) ALA004558 EMMA2K-B Owner's Manual (12 pages)
    EMMA System Owners Manual (12 pages) EMMA System Owners Manual (12 pages)
