Recessed Enclosure for 830-89A

194-89

Availability: In stock
Your Price:
$93.99
  • BAA
  • TAA
    DESCRIPTION

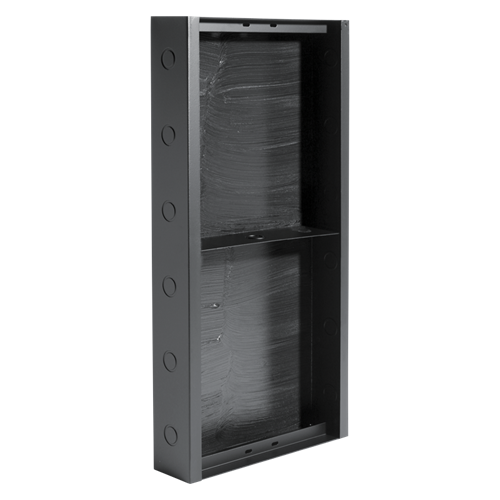

    The AtlasIED 194-89 protective enclosure for recessed mounting of 830-89A clock/speaker baffles. This 194-89 model contains 12 triple-compound conduit knockouts (six on both top and bottom) to facilitate easy wiring. Constructed of 20-gauge CRS and is heavily undercoated to prevent mechanical resonances. Unit contains a compartment divider to separate high and low voltage wiring. Finished with an epoxy coating.

    Features
    • Easy-to-Configure Standard Panels in Model NC850 Provide Custom Flexibility for Mounting Switches, Thermostat, and/or Lighting Controls.
    • Provisions for Easy Installation of Standard 8" Loudspeakers.
    • Recessed Mounting Style Meets Installation Requirements
    • Reliable Design Installs Quickly in New or Retrofit Construction

    SPECIFICATIONS
    Height 120 1/16" (30.63875 cm)
    Width 24 1/2" (62.23 cm)
    Depth 3" (7.62 cm)
    Shipping Weight 7.50 lbs (3.40 kgs)
    Mounts Baffle 830-89A
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    Series 830, 840, 194, and 195 Install Sheet (2 pages) Series 830, 840, 194, and 195 Install Sheet (2 pages)

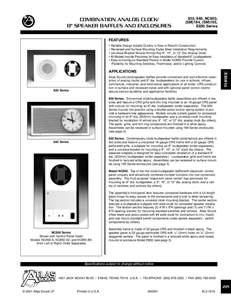

    Combination Analog Clock / 8 Combination Analog Clock / 8" Speaker Baffles and Enclosures (4 pages)
