Recessed Enclosure for 840-89A

195-89

Availability: In stock
Your Price:
$80.99
  • BAA
  • TAA
    DESCRIPTION

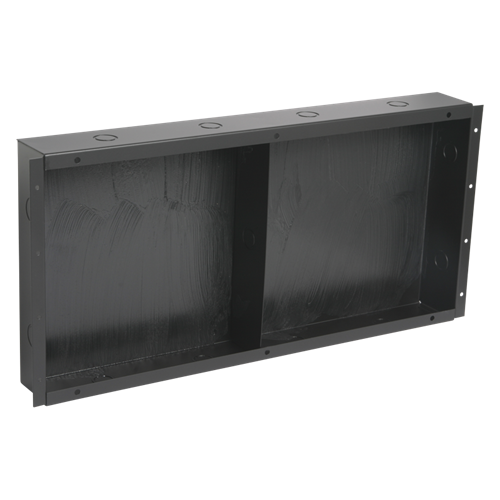

    Use AtlasIED 195-89 protective enclosure for recessed mounting of 840-812A clock/speaker baffle. The 195-89 has 12 knockouts (four on both top and bottom, two at each end). Constructed of 20-gauge CRS and are heavily undercoated to prevent mechanical resonances. Unit contains a compartment divider to separate high and low voltage wiring. Finished with an epoxy coating.

    Features
    • All Models Include Provisions for Easy Installation of Standard 8" Loudspeakers.
    • Easy-to-Configure Standard Panels in Model NC850 Provide Custom Flexibility for Mounting Switches, Thermostat, and/or Lighting Controls.
    • Recessed Mounting Style Meets Installation Requirements
    • Reliable Design Installs Quickly in New or Retrofit Construction

    SPECIFICATIONS
    Height 11 7/8" (30.1625 cm)
    Width 23 7/8" (60.6425 cm)
    Depth 3" (7.62 cm)
    Shipping Weight 7.00 lbs (3.18 kgs)
    Mounts Baffle 840-89A
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    Series 830, 840, 194, and 195 Install Sheet (2 pages) Series 830, 840, 194, and 195 Install Sheet (2 pages)
    Combination Analog Clock / 8 Combination Analog Clock / 8" Speaker Baffles and Enclosures (4 pages)
