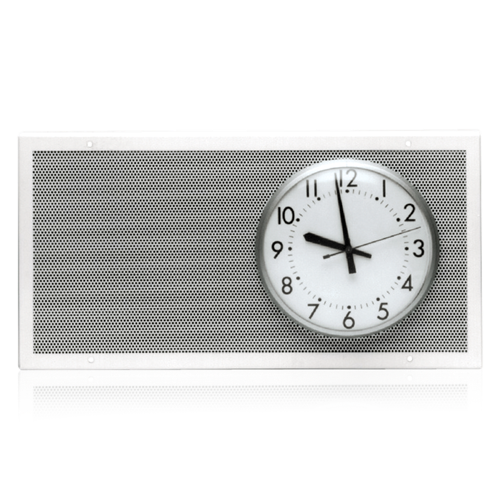

Perforated Baffle for 8 inch Speaker and 8 inch or 9 inch Analog Clock (Clock By Others)

840-89A

Availability: In stock
Your Price:
$239.99
  • BAA
  • TAA
  • HYFIDROPHOBIC_OPTIONAL
    DESCRIPTION
    Contemporary clock/speaker baffle assembly features a CRS grille and trim ring mounted to an 18-gauge CRS panel with cutouts for mounting an 8" dia. speaker (order separately). The 830 Series mounts into position using a double-action torsion spring system to provide a hardware-free appearance. Models include a black gasket for concealed mounting of an 8" dia. (203mm) speaker and a universal clock mounting bracket for installation of almost any 8" or 9" dia. analog clock (by others). The panel, grille, and trim ring components are finished in a white epoxy. Assemblies can be recessed or surface mounted using 194 Series enclosures.

    Features
    • Can be Recessed or Surface Mounted Using 195 Series Enclosures
    • Mounts into Position Using a Double-Action Torsion Spring System to Provide a Hardware-Free Appearance
    • Panel, Grille, and Trim Ring Components are Finished in a White Epoxy

    SPECIFICATIONS
    Clock Hole Size 8 3/4"
    Compatible Enclosures 195-89, SM195-89
    Height 13 11/16" (34.76625 cm)
    Width 26 3/4" (67.945 cm)
    Shipping Weight 4.00 lbs (1.81 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    840-89A CAD Drawing 840-89A CAD Drawing

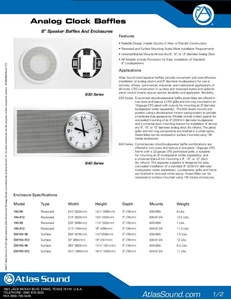

    Analog Clock Baffles Datasheet (2 pages) Analog Clock Baffles Datasheet (2 pages)

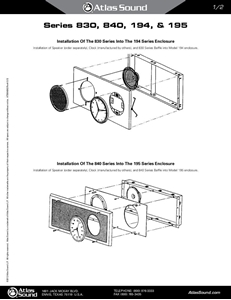

    Series 830, 840, 194, and 195 Install Sheet (2 pages) Series 830, 840, 194, and 195 Install Sheet (2 pages)
