15" 2-Way Stadium Horn Speaker System 50° x 40°

AH54-15-BSG

  • 4OHM8OHMCAPABLE
  • 70V100VCAPABLE
  • 50°H x 50°V Coverage
  • Non-Powered
  • IP54
    DESCRIPTION

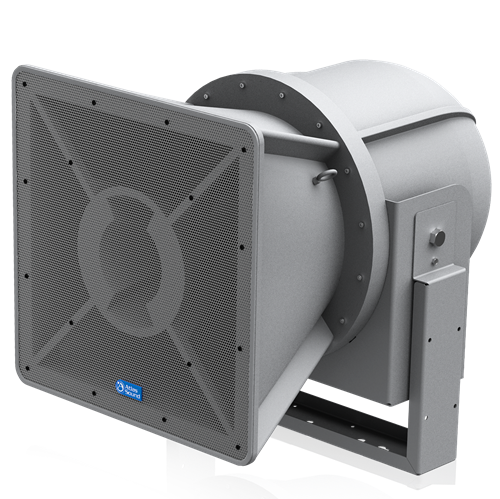

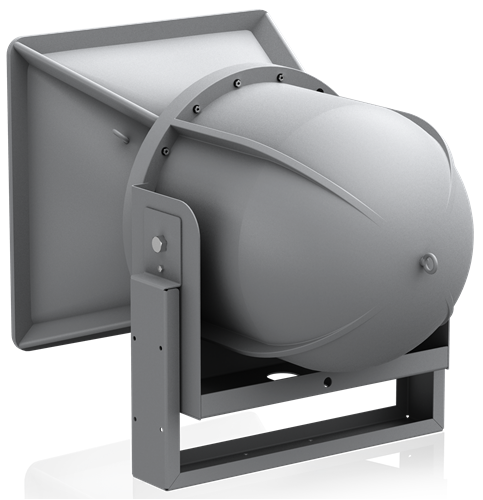

    AtlasIED model AH54-15-BSG  "stadium horn" is ideal for directional sound distribution where full range reproduction, maximum intelligibility and high sound pressure levels are required.

    Applications include football stadiums, sports arenas, baseball fields, convention centers and auditoriums.

    Weather resistant construction features of the AH54-15-BSG include a multiple screen configuration to prevent moisture from damaging internal components, a perforated aluminum screen covers the large horn mouth, a secondary screen is in place forward of the high frequency driver and a third tightly perforated screen protects the 15" cast frame woofer. A "weep" hole is also included on the back of the large horn "bell" to allow evaporation of any condensation that might build up internally.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.


    Features
    • 250 Watts power handling
    • 8-ohm nominal system impedance (70.7 volt operation via optional Atlas Sound model AF140 transformer)
    • Constant Directivity design offers controlled coverage of 50° horizontal by 40° vertical (2kHz octave band)
    • Driver compliment includes 15" cast frame woofer with a concentrically mounted 1" exit compression driver coupled to a 50°H x 40°V HF horn
    • Easy, weather resistant connection via a parallel 4-pole terminal block connector
    • Efficiency rating of 104dB (1 Watt/1 Meter)
    • Heavy Duty Stainless Steel Mounting Bracket (Included) Allows for Easy Installation to Most Any Flat Surface
    • Maximum output of 128dB (Rated Power @ 1M)

    SPECIFICATIONS
    Power Rating 250 Watts (53V) RMS
    Sensitivity 104dB SPL
    Frequency Response 75Hz - 14.5kHz
    Driver Type LF: (1) 15
    Height 20 1/2" (52.07cm)
    Weight 87 lbs. (39.5kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    AH54-15-BSG CAD Drawing AH54-15-BSG CAD Drawing
    AH54-15-BSG Revit Drawing AH54-15-BSG Revit Drawing
    AH54-15-BSG EASE DATA AH54-15-BSG EASE DATA

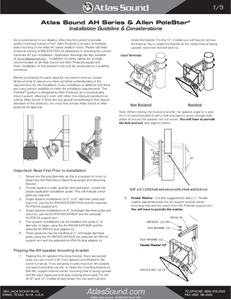

    AH Series PoleStar Install Parts Guide (5 pages) AH Series PoleStar Install Parts Guide (5 pages)

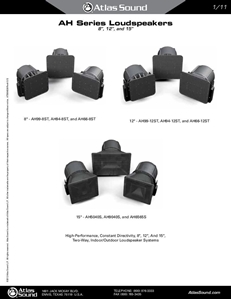

    AH-Series Loudspeakers Install Sheet (11 pages) AH-Series Loudspeakers Install Sheet (11 pages)

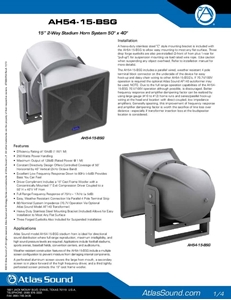

    AH54-15-BSG Datasheet (4 pages) AH54-15-BSG Datasheet (4 pages)
