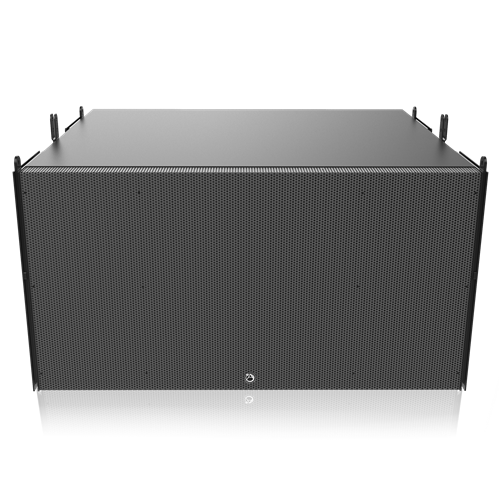

Dual 18" 3000-Watt Powered Subwoofer Enclosure

AL218A-B

  • BAA
  • TAA
    DESCRIPTION

    The Atlas A-Line AL218A-B is a dual 18" subwoofer that is designed to be flown or surface mounted in large format applications where high sound pressure levels are required. The unit features dual cast 18-inch subwoofers in a Baltic Birch enclosure that includes a durable finish. Each subwoofer is capable of handling 1500-watts RMS power for a total of 3000-watts. The power is delivered via an internal high
    efficiency, class-D amplifier. This amplifier features integrated DSP that allows the speaker to be configured via the network.

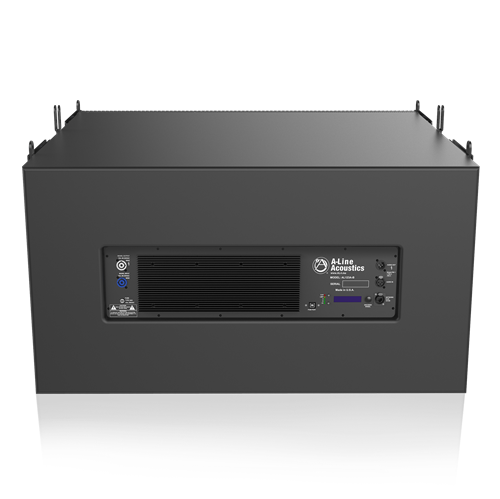

    Power connections are made using Powercon connectors and multiple units can be linked together via Speak-ON™ connections located on the back panel. The unit also includes the patent pending EZAL rigging system that is designed to make connecting multiple enclosures together easy in a flyable array. The AL218A-B is the ultimate way to reinforce low frequency reproduction in large format venues like arenas, stadiums, theaters, and concert venues.


    Features
    • Dual 18" Subwoofers
    • Integrated 3000-Watt Class D Amplifier
    • Network Connectivity for Onboard DSP Control and Configuration
    • Powercon, Speak-ON™, and XLR Rear Panel Connections
    • Baltic Birch Cabinet Construction

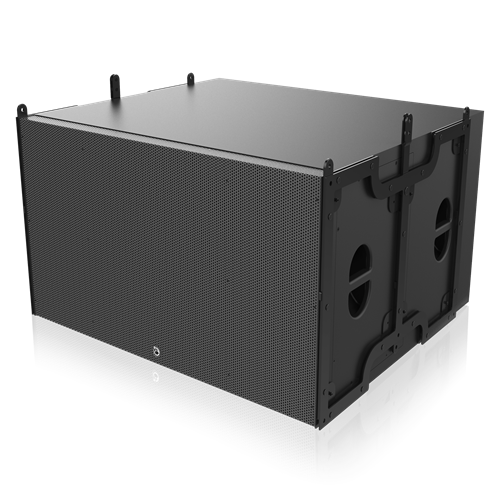

    • EZAL™ Rigging System
    • Finished in Heavy Duty Black Duracoat™

    SPECIFICATIONS
    Subwoofers Dual 18"
    Amplifier Topology Class D
    Frequency Response 25Hz - 152Hz
    Dispersion Omni
    Low Pass Filter 24dB/Oct @ 25Hz (factory preset)
    Enclosure Tuning Frequency 32Hz
    Dimensions (no Rigging) (enter custom value)
    Height 21.875" (555.63mm)
    Width 42.171" (1071.14mm)
    Depth 36.625" (930.28mm)
    Height 23.165" (588.39mm)
    Width 45.302" (1150.67mm)
    Warranty Period 60 months from date of purchase
