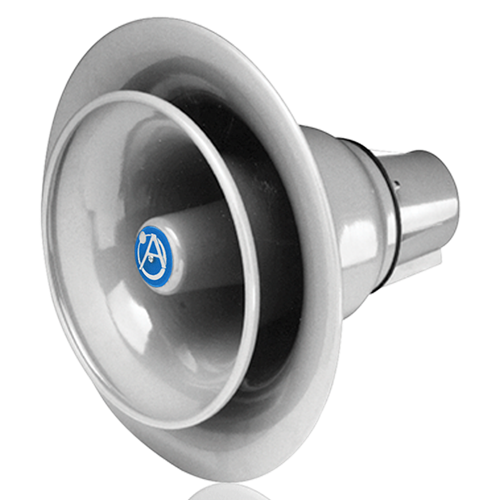

Radial Horn Speaker with 30-Watt 25V/70V/100V Transformer

APR-30AT

Availability: In stock
Your Price:
$236.99
  • TAA
  • 70V100VCAPABLE
    DESCRIPTION

    Model APR-30AT is a 30 watt speaker with 40° circular sound dispersion designed for overhead installation in industrial, transportation, and manufacturing centers.

    Unit is equipped with a combination 25/70.7/100 volt transformer with screwdriver-adjust power selection. Suspension ring provided on top of unit.

    Finished in grey baked epoxy.

    Optional Extras: BX-1A Vandal resistant cover plate for armored cable and conduit connection. Constructed of cast aluminum.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.




    Features
    • High Intelligibility for Sound, Intercom and Signal System Use
    • Internal 25/70.7/100-Volt Transformer
    • Radial Dispersion Pattern

    SPECIFICATIONS
    Frequency Response 300Hz - 12kHz
    Sensitivity 110dB
    Power Taps 2, 3.8, 7.5, 15, 30W @ 70.7V
    Dispersion 40°
    Depth 10 1/2" (26.67 cm)
    Diameter 9 1/4" (23.50 cm)
    Shipping Weight 9.50 lbs (4.31 kgs)
    Operating Temperature Range -40C to 70C
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    APR-30AT EASE DATA APR-30AT EASE DATA
    APR-30AT Datasheet (1 page) APR-30AT Datasheet (1 page)
