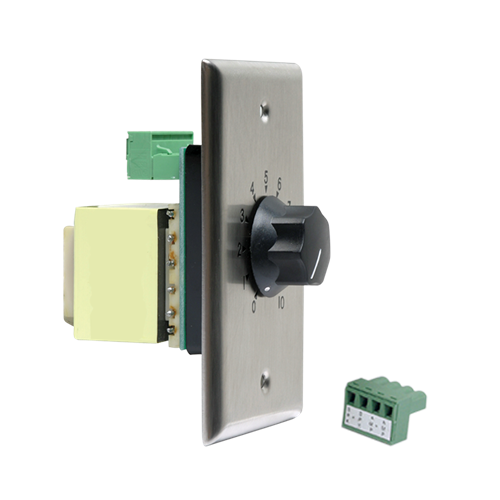

10 Watt Single Gang Stainless Steel 70.7V Commercial Attenuator

AT10

Availability: In stock
Your Price:
$34.99
  • UL Listed
  • 70V / 100V Operation
DESCRIPTION

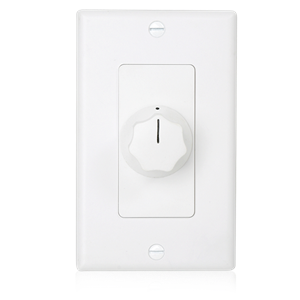

High-quality auto transformer series provides the advantages of excellent frequency response, low insertion loss and reliable performance for volume control application in 25 and 70.7-volt systems. Attenuation is accomplished in ten make before break steps plus positive off position. (No stop between maximum and off position to prevent switch damage). Contacts are silver plated for noise-free operation. Features a removable terminal block. Includes stainless steel plate, with stamped and filled or screen printed dial scale and a skirted black knob. (White and ivory plastic plates with matching skirted knobs also available in Decora style-see AT model description chart.)


Features
  • 10 Attenuation Steps with Positive Off
  • Mount into Most 1-Gang E.O. Boxes

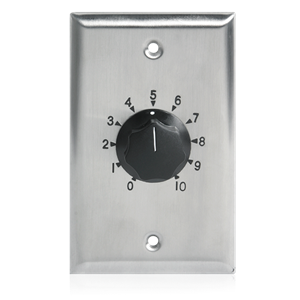

  • Wall Plates are Stainless Steel with Stamped and Filled Dial Scale, and a Skirted Black Knob

SPECIFICATIONS
Plate Size 1 gang
Plate Type Stainless Steel
Power Rating 10W
Total Attenuation 33 dB
Height 4 1/2" (11.43 cm)
Width 2 3/4" (6.985 cm)
Depth 2 1/8" (5.3975 cm)
Shipping Weight 1.00 lb (0.45 kgs)
Safety Listed 813, 2043
Warranty Period 60 months from date of purchase
