Sound Masking & Commissioning Precision Level Control

ATMASKSC

Availability: In stock
Your Price:
$41.99
    DESCRIPTION

    The AtlasIED ATMASKSC is specially designed to be used with the M1000A35 Self-Contained Active Masking System where precision adjusting of level control is required. It employs a ten-position, non-shorting rotary switch without end-stop. The attenuation rate is 1dB per step from 0dB to -9dB.

    Features
    • Designed to be used with M1000A35
    • 1dB Steps for Precision Sound Masking Settings
    • 2 or 3 Conductor Interface Connection
    • Works with other 10k Ohm VCA 2 or 3 Conductor Systems
    • Matches Stainless Steel Standard Volume Wall Plate
    • Maximum Tested Distance 500ft, 22-Gauge Wire
    SPECIFICATIONS
    System Type Wall Plate Mounted Precision Stepped Attenuator for M1000A34
    Total Attenuation 0dB to -9dB (it does not turn OFF the audio)
    Impedance 10k Ohm
    Plate Size 1 gang
    Plate Type Stainless Steel
    Dimensions (HxWxD) 2.27" x 4.5" x 1.6" (69.85mm x 114mm x 41.3mm)
    Weight 0.16lbs (0.074kg)
    Safety Listed UL2043 when used with the M1000A35
    Warranty Period 60 months from date of purchase
    SUPPORT FILES

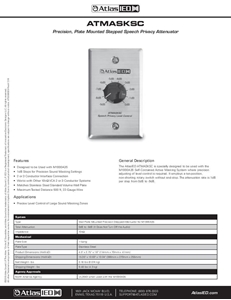

    ATMASKSC Install Sheet.pdf (2 pages) ATMASKSC Install Sheet.pdf (2 pages)
    View | Download

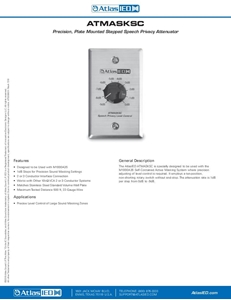

    ATMASKSC Datasheet (5 pages) ATMASKSC Datasheet (5 pages)
    View | Download

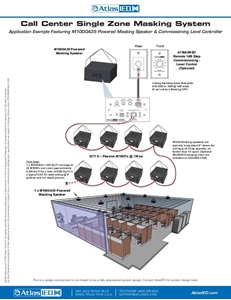

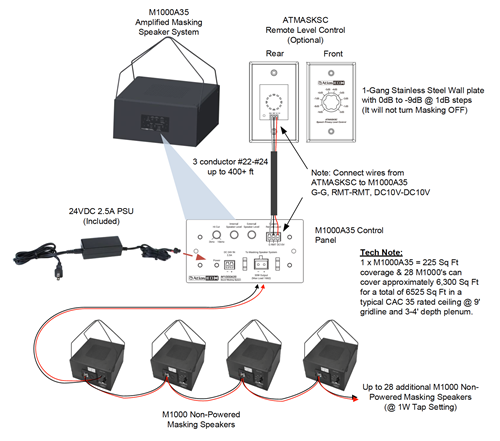

    Call Center Single Zone Masking System (1 page) Call Center Single Zone Masking System (1 page)
    View | Download
