BlueBridge® Controller with 4 Buttons and 1 Level Control

BBWP-S4K1B

Availability: In stock
Your Price:
$772.99
  • UL Listed
  • Network Ready
  • PoE Enabled
  • One Cable Installation
    DESCRIPTION

    The BBWP-S4K1B is part of the BlueBridge® DSP product line. The BBWP-S4K1B is a four-button wall controller that can be used to change any four preset selections and level control. It can also control button, preset, matrix connect, and mute functions. Using BlueBridge® Designer software, you can virtually assign level values and stack multiple actions to the single level control.


    Features
    • Power and Network Status Indicator LEDs
    • 5 Label Slots with Plastic Covers
    • Single Level Control with LED Ladder Level Indicator
    • Aluminum Front Panel
    • RJ45 Ethernet Connector
    • External Power: 2 Pin Detachable Euro Connector
    • IP Reset Switch Push Button
    • Also Available in White

    SPECIFICATIONS
    Power 5V DC @ 1A, Power Supply Included 48VDC-PoE
    Wall Mounting Fits 2-Gang Back Box
    Height 4.5" (114.3mm)
    Warranty Period 36 months from date of purchase

    SUPPORT FILES
    BlueBridge Designer II 4.0.0 for Windows BlueBridge Designer II 4.0.0 for Windows
    BlueBridge Designer II 4.0.0 MacOS BlueBridge Designer II 4.0.0 MacOS
    BlueBridge Control 4.0.0 for Windows BlueBridge Control 4.0.0 for Windows
    BlueBridge Control 4.0.0 for MacOS BlueBridge Control 4.0.0 for MacOS
    BlueBridge Wall Control Label Template
    BlueBridge Wall Plate Firmware Version 5.3.4 BlueBridge Wall Plate Firmware Version 5.3.4

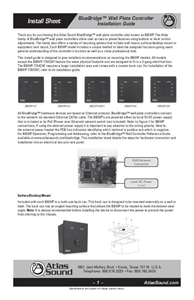

    BBWP Install Sheet (4 pages) BBWP Install Sheet (4 pages)
    BlueBridge Designer II User Guide (77 pages) BlueBridge Designer II User Guide (77 pages)
