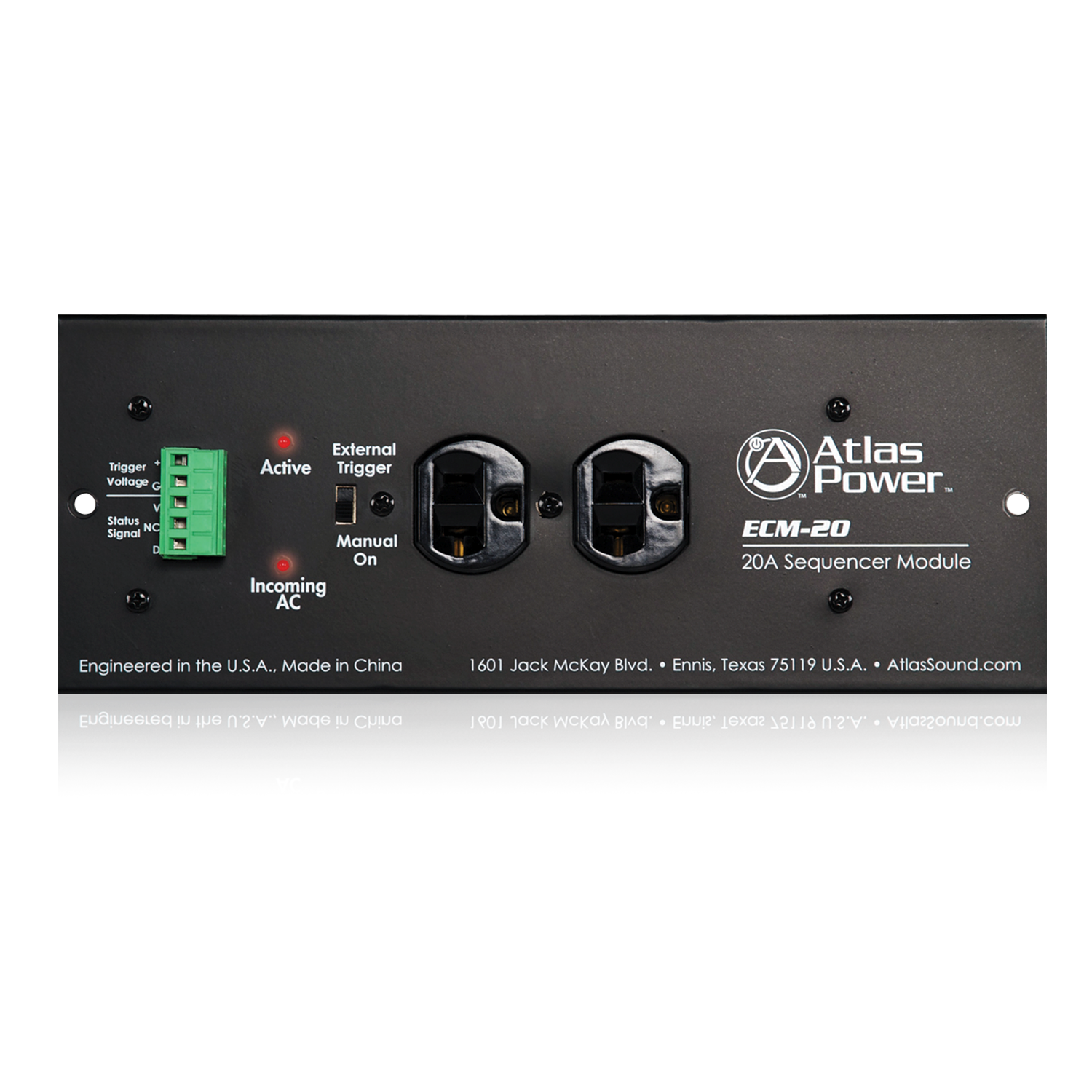

20A AC Power Conditioner and Spike Suppressor

ECM-20

Availability: In stock
Your Price:
$177.99
  • UL Listed
  • CUL
  • ETL
  • CETL
    DESCRIPTION

    The Atlas Power ECM-20 is a 20A Power Conditioner and AC Spike Suppressor that is designed to be used as a standalone unit or in conjunction with an ECS unit up to 1000ft away. The ECM-20 features AC Spike and Surge Suppression, AC Mains Voltage monitoring, EVS circuitry, and Remote Activation.

    The ECM-20 is designed to be conveniently housed in the ECM-RACEWY6 for the addition of multiple outlets directly connected to the AC mains from the electrical panel.


    Features
    • 2 Outlets, 20A
    • Manual/Auto On/Off Switch
    • Incoming AC Present LED
    • Active LED
    • Clamping Spike & Surge Suppression
    • AC Mains Voltage Monitoring
    • Radio Frequency and Electromagnetic Interference Filtering

    SPECIFICATIONS
    Current Rating 20 Amps
    Power Requirement 120V 60Hz
    Certified to Safety Listing MET (UL 1449)
    Operating Voltage 102-132VAC
    Minimum Spike Clamping Voltage 460 VRMS @ 3000A
    Maximum Spike Clamping Voltage 6,000V
    Power Consumption .5 Watts
    Height 3.0" (76.2mm)
    Width 8.5" (215.9mm)
    Depth 3.5" (88.9mm)
    Weight 1.25 lbs. (.68 kg)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES

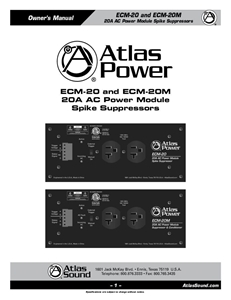

    ECM-20 - ECM-20M Owners Manual (12 pages) ECM-20 - ECM-20M Owners Manual (12 pages)

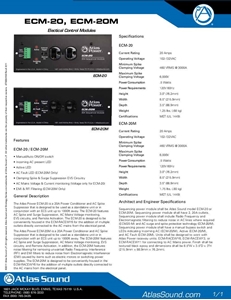

    ECM-20 & ECM-20M Datasheet (1 page) ECM-20 & ECM-20M Datasheet (1 page)
