15" Powered Subwoofer System for Portable Installations - Black

EJW115A-B

  • BAA
  • TAA
  • Onboard DSP
  • Powered
    DESCRIPTION

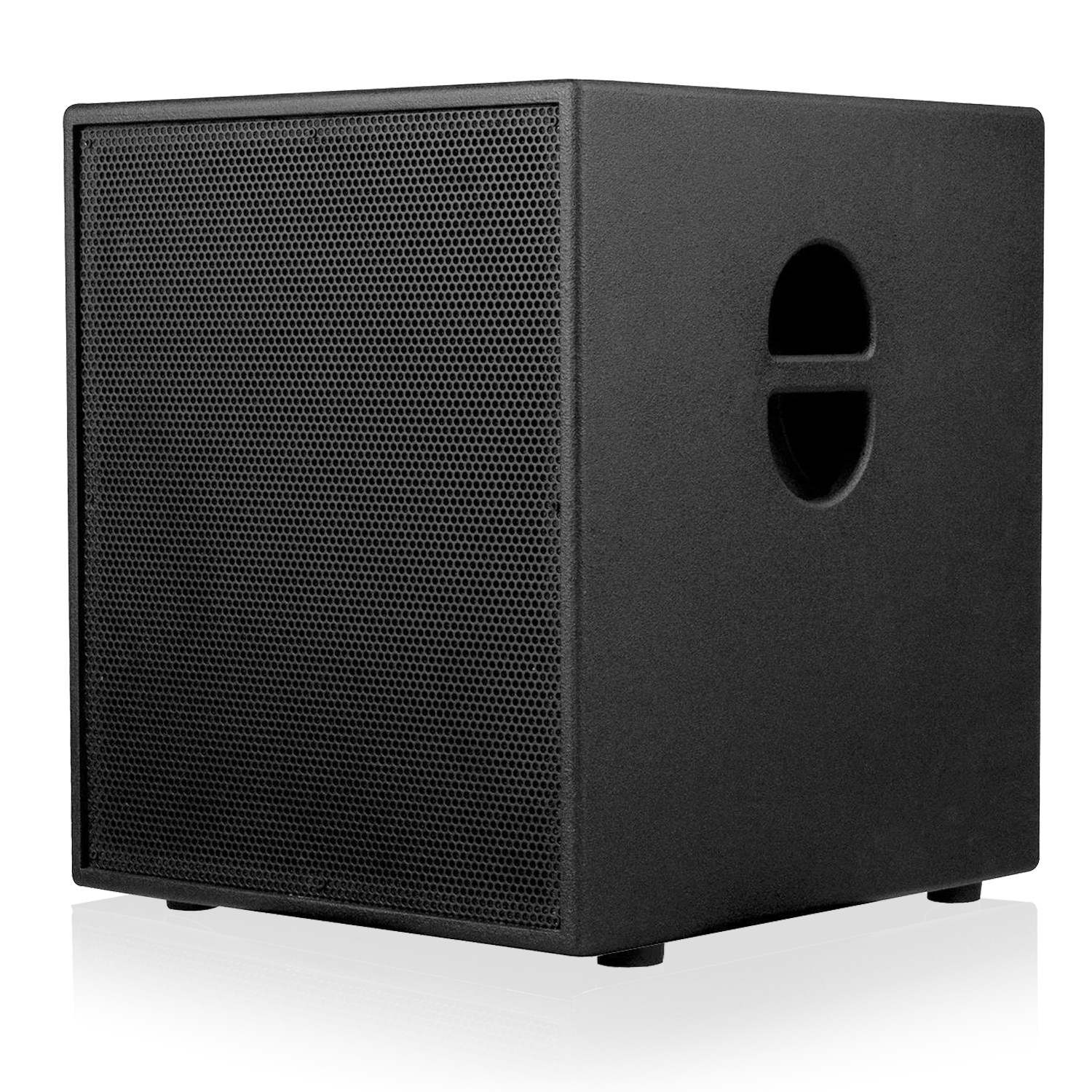

    The AtlasIED EJW115A-B subwoofer speaker system is a high intelligibility, high efficiency speaker system that is ideally suited for use in speech and music reproduction applications for small venues like houses of worship, medium sized theaters, or schools in conjunction with the EJW2003-B full range line array speaker system. The EJW115A-B includes a single 15" subwoofer in an optimally designed and constructed sealed Baltic birch enclosure. This design provides even sound distribution. The EJW115A-B includes a 500W RMS integrated class-D amplifier that includes onboard DSP. The EJW115A-B is designed to provide power to an EJ2003-B in a single ELIJAH line array system and includes all necessary hardware to make this connection.


    Features
    • Single 15" Subwoofer
    • Integrated 1000W RMS Class D Amplifier (A Version)
    • Finished in Heavy Duty Black Duracoat™

    SPECIFICATIONS
    Amplifier Power 1000 Watts
    Frequency Response 41Hz - 140Hz
    Horizontal Dispersion Omni
    Frequency Response 40Hz - 200Hz
    Height 21.6" (54.86 cm)
    MAX SPL 128 dB
    Width 18.25" (46.36 cm)
    Depth 19.4" (49.28 cm)
    Weight 65 lbs (29.48 kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    ELI_115A EASE DATA ELI_115A EASE DATA
    EJW115 Datasheet (1 page) EJW115 Datasheet (1 page)
