Compact Passive Low Frequency 10" Speaker System

ELW110X-B

  • Non-Powered
    DESCRIPTION

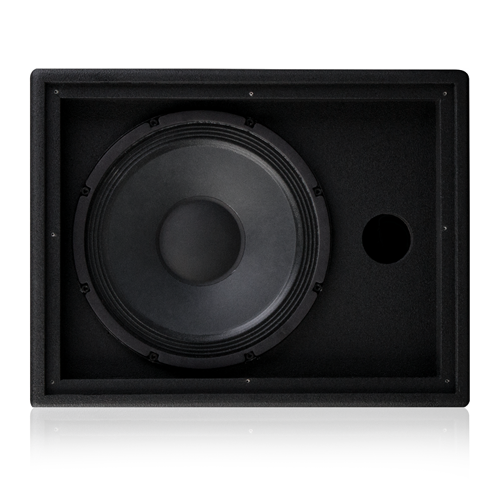

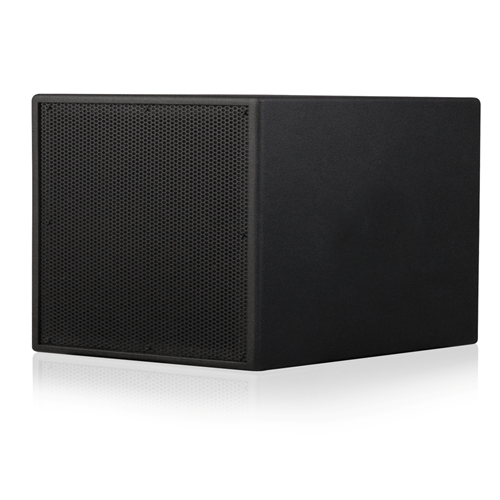

    The Atlas A-Line ELW110X-B low frequency speaker system is designed to be used in conjunction with an EL1503-B full range line array speaker system. The ELW110X-B includes a single 10" low frequency driver in an optimally designed and constructed enclosure. The ELW110X-B is designed to be used in conjunction with an EL1503-B.


    Features
    • NL4 Speak-ON™ Connectors
    • Single 10" Low Frequency Driver
    • Finished in Heavy Duty Black Duracoat™
    • I/O Powercon Connectors

    SPECIFICATIONS
    Midrange RMS Power 1000 Watts
    Horizontal Dispersion Omni
    Frequency Response 49Hz - 160Hz
    Frequency Response 40Hz - 200Hz
    Height 17.5" (44.45 cm)
    MAX SPL 128 dB
    Width 13.0" (33.02 cm)
    Weight 30 lbs (13.61 kg)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    ELW110 Datasheet (1 page) ELW110 Datasheet (1 page)
