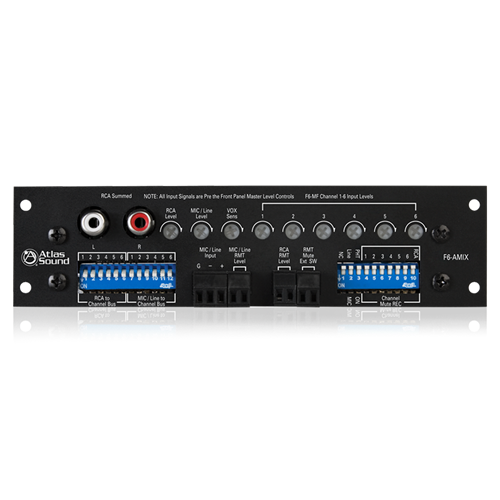

Multi-Function Analog Mixer Card Input Module for Use With the F6-MF Modular Amplifier

Name: Discontinued Obsolete SKU
Brand: AtlasIED
SKU: F6-AMIX
Rating: 5 (5 reviews)

F6-AMIX

DESCRIPTION

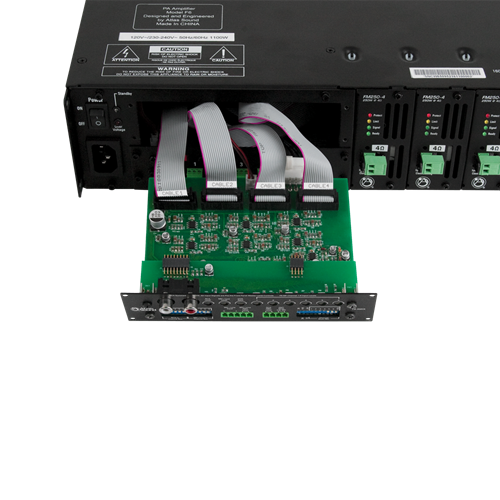

The F6-AMIX is an 8 input by 6 output analog mixer card designed for use with the F6-MF. The F6-AMIX module adds increased functionality and value to the F6-MF Multi-Impedance Modular Amplifier, reducing the need for additional external devices for more complex paging and background music systems. The F6-AMIX Multi-Function Analog Input Mixer Card is feature loaded with stereo summed and Mic/Line inputs with global assignment, signal mixing and remote level control, and mute priority capabilities.

Features

Mic/Line Input with Phantom Power
AUX Input with Stereo Summing
Matrix Routing of Mic/Line and AUX Inputs to Any Output
Separate Remote Level Control of Mic and AUX Inputs
Mute Bus with VOX and Contact Closure Muting

SPECIFICATIONS

Inputs	(enter custom value)
Type	Qty 1, Unbalanced
Connector Type	RCA Left and Right Actively Summed
Input Level	316mV (-10dBV)
Type	Qty 1, Balanced Mic or Line Selectable
Connector Type	Removable 3 Position Captive Screw 3.5mm Spacing
Line Input Level	1V Balanced
Mic Input Level	40dB Gain
Type	Qty 6, Balanced from F6-MF Input
Input Level Control	Channels 1-6, Mic/Line, RCA Summed
Remote Level Control Port	Mic/Line and RCA, Qty 2 Removable 2 Position Captive Screw 3.5mm Spacing for Each Port
VOX Sensitivity	Sensitivity Range 2mV-20mV
Phantom Power	15VDC
Frequency Response	20Hz - 20kHz
THD	0.06% at 1kHz Average
Dimensions	1.55" (40mm) x 6.125" (156mm) x 5.34" (135mm)
Warranty Period	36 months from date of purchase

SUPPORT FILES

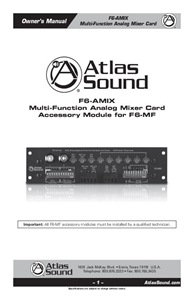

F6-AMIX Owners Manual (16 pages)

View | Download
