4 inch Speaker With 25/70.7V-4W Transformer - Model Has Been Replaced By FC104T72

FA114T72

  • UL Listed
  • CUL
  • 70V100VCAPABLE
    DESCRIPTION

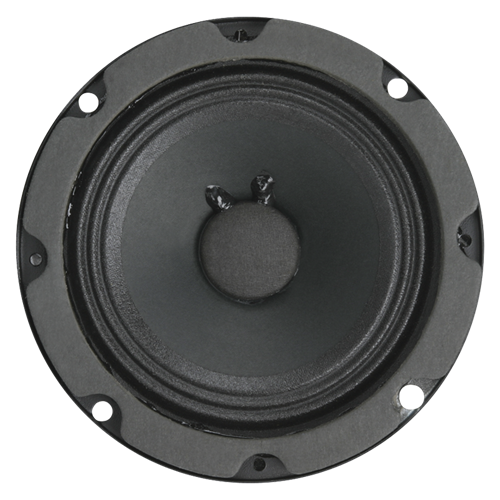

    The general purpose Model FA114T72, 4" (127mm) speaker is UL listed and handles 10-watts with quality, low-frequency reproduction and smooth extended response.

    The unit's 135° dispersion angle (-6dB 2kHz Octave Band) effectively reduces the number of speakers necessary to achieve total coverage in low-ceiling distribution systems.

    For optimum application versatility, Model FA114 has been engineered as a system with versatile 25V/70.7V transformer, optional matched enclosures, and selection of attractive grilles.

    Speakers front-load into the enclosure or may be ceiling / wall mounted into areas with minimum depth by using plaster ring Model FAPR-4 instead of an enclosure.


    Features
    • Choice of System Components Including: Transformers, Acoustic Enclosures, Tile Bridge, Plaster Ring, Trim Ring and Hardware-Free Grilles
    • Economical, UL Listed, 4" General Purpose Loudspeaker
    • Front Loads into Acoustically-Matched System Enclosures, Plaster, or Trim Ring
    • Patented, Easy-to-Install Loudspeaker Mounting System
    • Wide-Angle Dispersion for Excellent Sound Coverage in Rooms with Low Ceilings
    • UL Certified, Safety Listed to UL1480

    SPECIFICATIONS
    Depth 3 7/8" (9.8425 cm)
    Sensitivity 89.6dB Average, 94dB Peak
    Diameter 5" (12.7 cm)
    Shipping Weight 2.67 lbs (1.21 kgs)
    Frequency Response 150Hz-17kHz (±1.5dB)
    Power Taps .5, 1, 2, 4
    Speaker Type Full Range
    Dispersion 135°
    Safety Listed 1480

    SUPPORT FILES
    FA114T72 FA114T72

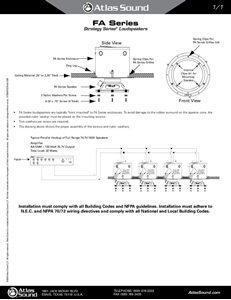

    FA Series Install Sheet (1 page) FA Series Install Sheet (1 page)
    Strategy Series 4 Strategy Series 4" Full-Range System Loudspeakers Datasheet (2 pages)
