Fire Rated 8" Strategy Coaxial Speaker with 8-Watt 70.7V Transformer, Enclosure, and Baffle

FA138T87FRK

Availability: Call for Availability
Your Price:
$422.99/each
Must purchase in multiples of 6
  • UL Listed
  • BAA
  • TAA
  • 70V100VCAPABLE
    DESCRIPTION

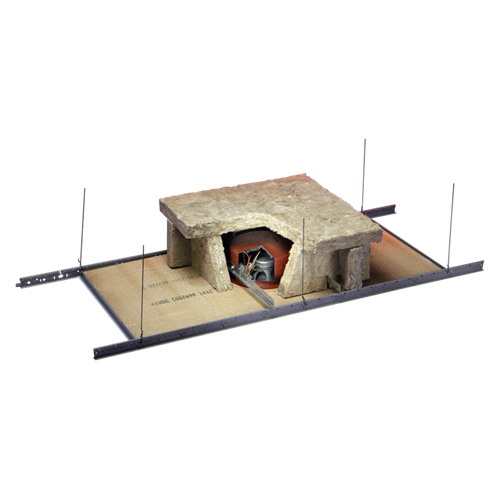

    FA138T87FRK is UL classified for fire-resistance in the United States. The FA138T87FRK has passed a fire-rating up to three hours (rating varies by ceiling construction) and has been tested in accordance with the UL standard – Fire Test of Building Construction and Materials, ANSI/UL263 (ASTM E119, NFPA 251). FA138T87FRK assembly includes a enclosure-fiber kit, UL listed speaker/transformer assembly, and UL Listed baffle. Each enclosure-fiber kit includes pre-cut fiber panels, metal enclosure, rail set and hardware. The speaker/transformer approved for use with the FA136T87FRK are FR versions of the industry standard AtlasIED Strategy Series FA136, FA138 models and the C803A, C10A, and FC104 speakers.


    Features
    • 8 Watt 70 Volt Transformer
    • 8" Coaxial Driver with Tuned Enclosure
    • ASTM E119 Standard, NFPA 251
    • Designed to Work in 32 Different 1,2, & 3 Hour Rated Ceiling Designs as Listed in the 1999 UL Fire Resistance Directory

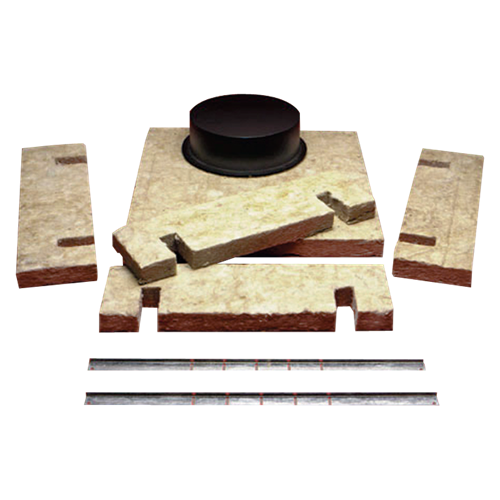

    • Enclosure-Fiber Kit Includes Pre-Cut Fiber Enclosures, Metal Enclosure, Rail Set, and Hardware
    • FR Series Assemblies Include Enclosure Kit, UL Listed Speaker/Transformer Assembly, and UL Listed Baffle
    • Quick Installation & Low Installed Cost
    • UL 263 Listed for Fire Rated Ceilings
    • Uses Industry Standard Atlas Strategy Series Components with Proven Performance

    SPECIFICATIONS
    Height 10 3/4" (27.305 cm)
    Width 24" (60.96 cm)
    Included Baffle FA720-8FR
    Included Speaker FA97-8FR
    Included Enclosure FA138T87FR
    Safety Listed ANSI / UL 263 (ASTM E119, NFPA 251)

    SUPPORT FILES
    FR Series Datasheet (3 pages) FR Series Datasheet (3 pages)
