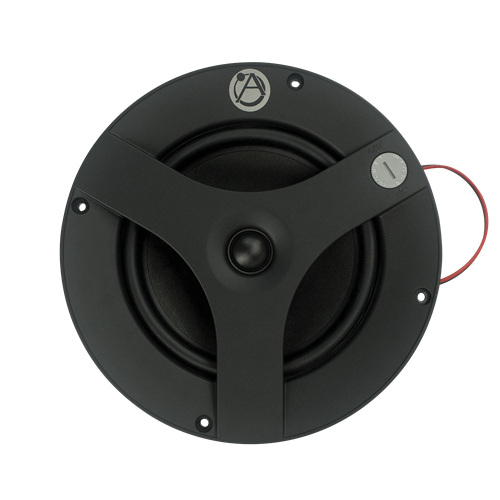

6" In-Ceiling Coaxial Speaker Motorboard Assembly with 32-Watt 70.7V/100V Transformer

Name: 6 Inch Coaxial In Ceiling Speaker Motorboard Assembly
Brand: AtlasIED
SKU: FA63T-8MB
Rating: 5 (5 reviews)

FA63T-8MB

Availability: In stock

Your Price:

$112.99

DESCRIPTION

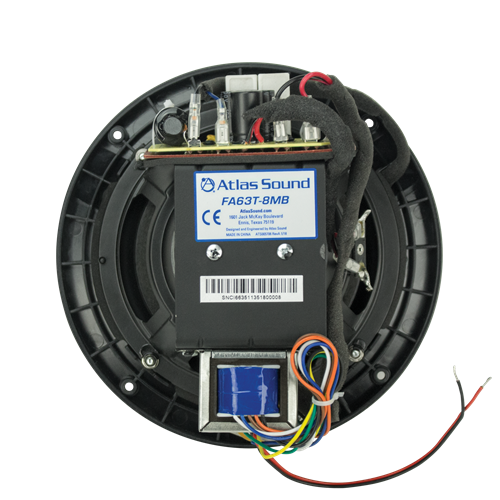

Model FA63T-8MB is the entire 6" speaker/ transformer/ selector switch/ front plate assembly found in the FAP63T assembly. The footprint of the FA63T-8MB is identical to a standard FA series 8" speaker component. This footprint allows the motor board to fit into all original Strategy Series 8" enclosures in the exact same manner as a regular 8" FA speaker (FA138Txx).

Features

6" Speaker Installs into 8" Strategy Enclosure (FA97-8)
Designed for Division of Labor Installations When Enclosures Need to be Installed Before Speakers
Enhanced Quality 70.7V/100V Internal Transformers Minimize Insertion Loss and Maintain Low Frequency Response While Providing increased Output for Higher SPL Applications
Front Mounted Tap Selector Switch for Easy System Tuning Adjustments Includes Transformer Bypass Setting for 8 ohm Direct Coupled Operation
Tuned Port Maximizes Low Frequency Response from FA97-8 & FA95-8 Enclosure
UL1480 for General Signaling Listed file UEAY.S1824

SPECIFICATIONS

Speaker Type	Coaxial
Sensitivity	88dB Average
Frequency Response	63Hz - 20kHz
Power Taps	2, 4, 8, 16, 32, 8 Ohm direct
Dispersion	110°
Depth	5 1/2" (13.97 cm)
Diameter	8 1/2" (21.59 cm)
Shipping Weight	6.00 lbs (2.72 kgs)
Safety Listed	1480
Warranty Period	60 months from date of purchase

SUPPORT FILES

FA63T-8MB Data Sheet (6 pages)

View | Download
