Recessed Enclosure w Dog Legs for 8" Strategy ExDeep

FA97-8NK

Availability: In stock
Your Price:
$68.99
  • CUL
  • BAA
  • TAA
  • Made in USA
    DESCRIPTION

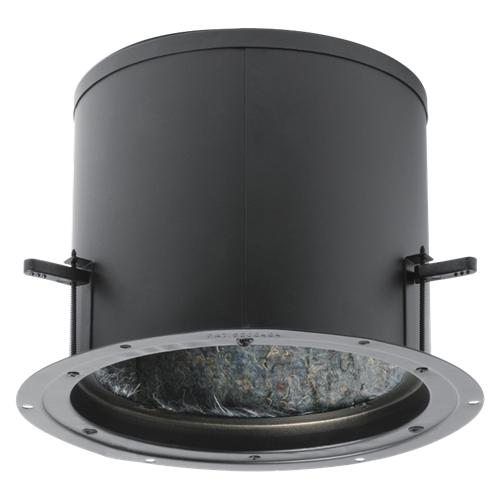

    Model FA97-8NK installs quickly and easily in plaster, drywall, or suspended tile ceilings up to 2 3/8" thick utilizing three, easy-to-adjust rotating clamps that rotate and secure into position with a screwdriver.

    The enclosure front-loads AtlasIED's Strategy Series 8" dia. speaker Models FA138 and FA118. This direct speaker to enclosure mounting method removes all load-bearing requirements from the grille, allowing the use of welded studs for convenient, push-on grille installation — a time-saving feature which presents a clean and hardware-free appearance. It also facilitates fast and easy grille removal for painting or other maintenance.

    FA97-8NK Enclosure allow the high-performance coaxial FA138 and FA118 speaker to achieve maximum potential.

    This high-quality speaker/enclosure combination is perfect for applications where high-fidelity music and intelligible speech are imperative.

    Features
    • Acoustically Treated Enclosure for Strategy I Speakers
    • Depth of Enclosure Allows for Extended Low Frequency Response
    • Flip Tab Dog Ears Allow for Installation in Ceilings Up to 2 3/8" Thick
    • Recessed Lip in Opening Mounts Speaker Directly to Enclosure to Provide a Sealed System
    • Speaker Mounted to Enclosure Frees Grill from Any Load Bearing Requirements so Push-Mount Style Grills can be Used
    • Tubular Spring Clips on Flanged Face Accept Ribbed Weld Studs on Strategy I Grills
    • UL1480 and UL2042 listed for Use in General Signaling and Plenum Ceilings

    SPECIFICATIONS
    Depth 7 5/8" (19.3675 cm)
    Diameter 8 1/2" (21.59 cm)
    Shipping Weight 4.17 lbs (1.89 kgs)
    Safety Listed 1480, 2043
    Warranty Period 60 months from date of purchase

    SUPPORT FILES

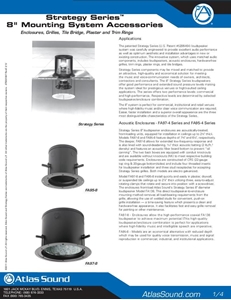

    8 8" Mounting System Accessories Datasheet (4 pages)
