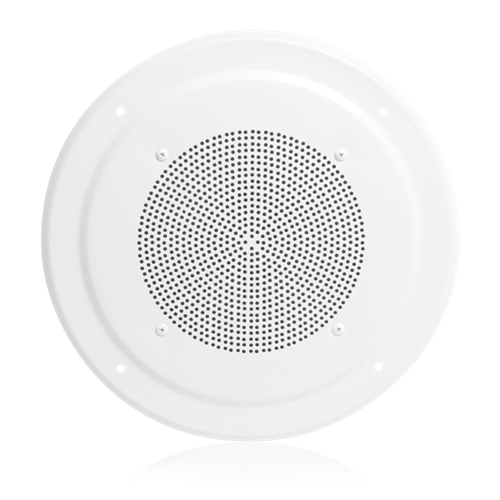

8" In-Ceiling Speaker with 5-Watt 25V Transformer and M222W Baffle

FD25M222W

  • UL Listed
  • CUL
  • BAA
  • TAA
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

    C5A package pre-assembled with 25V transformer and model M222W contoured aluminum baffle. Perfect for health care applications


    Features
    • Aluminum Contoured Baffle is Painted White
    • Dual Cone Type Driver
    • Factory-Assembled Loudspeaker Packages Reduce Installation Time and Expense
    • Mounts to Standard Tile Bridges, Enclosures, and Plaster Rings
    • Sensitivity 97dB 1W/1m
    • Speaker Package Includes Driver, Transformer, Baffle, and Hardware Bag
    • UL1480 & UL2043 listed

    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Peak, 94dB Average
    Frequency Response 100Hz - 10kHz
    Power Taps .5, 1, 2, & 5 Watts
    Dispersion 105°
    Depth 2 5/8" (6.6675 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 3.17 lbs (1.44 kgs)
    Warranty Period 60 months from date of purchase
