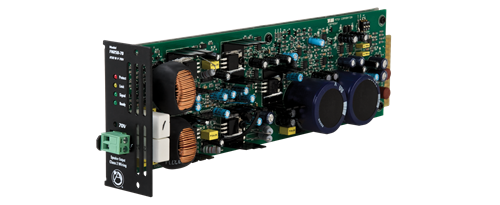

70V Amplifier Card Module for Use In F6-MF

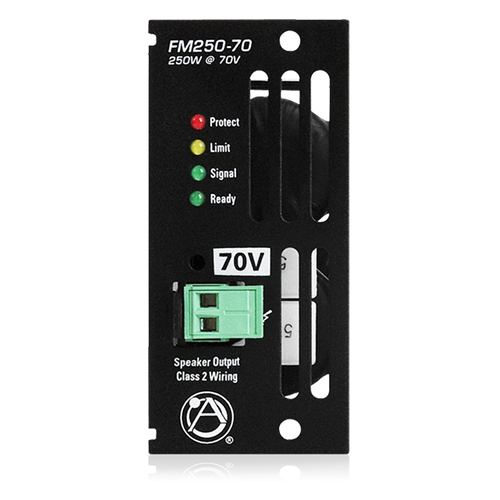

FM250-70

  • 70V / 100V Operation
    DESCRIPTION

    This amplifier card module is designed to be used with the F6-MF in any configuration from one module to six modules. Each module has 250W of output power and each features a defeatable limiter and high pass filter.

    The F6 FM250 series power modules are designed to be 90% efficient allowing the amplifier to run cooler and consume less energy than conventional commercial amplifiers.


    Features
    • Fixed 30Hz High Pass Filter
    • Selectable Input Sensitivity per Channel, 1V or 2V
    • 30dB per Channel Voltage Gain
    • Balanced 20k Input Impedance

    SPECIFICATIONS
    2 Channels 280W Each
    6 Channels 250W Each
    1 Channel 270W
    6 Channels 170W Each
    Frequency Response 30Hz - 20kHz
    Signal to Noise Ratio -90dB Below Rated Output
    Height 3.4" (86mm)
    Width 1.5" (38mm)
    Depth 10.4" (264mm)
    Weight .8 lbs. (.36kg)
    Warranty Period 36 months from date of purchase
