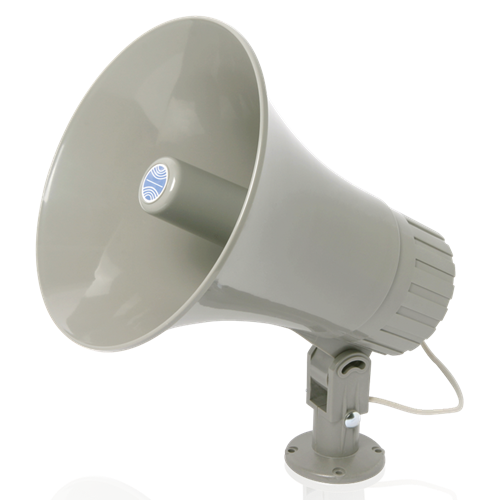

Re-Entrant Horn Speaker with 25V/70.7V-30W Transformer

Name: Re-Entrant Horn Loudspeaker w 25/70.7V-30W Transformer
Brand: AtlasIED
SKU: GA-30T
Rating: 5 (5 reviews)

GA-30T

Availability: In stock

Your Price:

$120.99

DESCRIPTION

The GA-30T speaker is a utility horn perfectly suited for voice paging and music transmission. Double re-entrant horn construction optimizes speaker output to penetrate ambient sound levels. This 30-watt model incorporates a compression driver with ceramic magnet and includes a combination 25/70.7-volt line transformer with multi-position knob switch for selecting power taps. Unit is also equipped with wiring for an 8-ohm connection to facilitate installation when a transformer is not required.

GA-30T features a round, high-impact plastic horn and will withstand outdoor installation in high-humidity environments. Adjustable surface mounting bracket provides multiple (vertical & horizontal) positioning. Each assembly is supplied with 21-gauge 18" color coded wire leads for matching polarity and speaker connection.

Entire assembly is gray with silver colored hardware

Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.

Features

Dual Voltage, Knob-Adjustable Impedance Selection for 25/70.7V Line Connection
Multi-Function, Re-Entrant Horn Loudspeakers Offer Efficient Sound Penetration and Dispersion for Paging, Music and Intercom Use
Sturdy Construction for Long-Term Indoor and Outdoor Use

SPECIFICATIONS

Frequency Response	500Hz - 3kHz
Sensitivity	103dB
Power Taps	4, 8, 15, & 30 Watts @ 70.7V
Dispersion	60°
Warranty Period	60 months from date of purchase

SUPPORT FILES

GA-30T

Download

GA Series Datasheet (2 pages)

View | Download
