4 x 4 Analog/Dante I/O Module

IED1544AIO-D

Availability: In stock
Your Price:
$979.99
  • Software License Required
  • Dante enabled
  • PoE Enabled
  • Network Ready
    DESCRIPTION

    The IED1544AIO-D is a 4-input (2 flow) x 4-output (2 flow) mic / line level analog pre-amplifier that converts analog audio signals to Dante® network
    audio. Multiple channels of Dante® network audio can be transported over standard IP networks. The IED1544AIO-D 4x4 Dante® I/O Module features four analog balanced mic or line inputs (selectable) and four balanced line outputs. The four analog inputs are converted into Dante® network audio and can be routed via Dante Controller™. The four outputs convert Dante® digital audio received over the LAN into analog audio. There are indicators for network connection, network audio traffic, and power. Each input can be selected to Line or Mic level. In Mic mode, each input has 3 gain selections with Phantom Power. The IED1544AIO-D requires no external power supply. It is powered via a network PoE port or a PoE injector.

    NOTE: For GLOBALCOM® GCK systems, the IED1544AIO-D acts as a 2x2 I/O device. For GLOBALCOM® EN5400 systems, the IED1544AIO-D also acts as a 2x2 I/O device, with the exception that all four outputs can be used, but only if they are receiving from no more than two distinct sources.


    Features
    • Dante® Digital Audio Platform

    • Analog Line or Mic Level Input

    • Convert Analog Mic/Line Audio to Dante® Network Audio

    • Convert Dante® Network Audio to Analog Audio Out

    • 48V Phantom Power

    • Input Signal & Peak LED Indicators

    • Independent Gain Selection on Each Input

    • Analog Balanced Line Output

    • Output Signal LED Indicators

    • PoE Powered


    SPECIFICATIONS
    Input impedance 2.2kΩ (Analog)
    Output impedance 600Ω (Analog)
    THD 0.06% @ 1kHz
    Frequency Response 20Hz - 20kHz (+/-2dB)
    Signal to Noise Ratio 110dB @ 1kHz
    Power Consumption 5W
    Height 1.75" (44mm)
    Width 3.27" (83mm)
    Depth 6.55" (166mm)
    Weight 1.2 lb (550g)
    Warranty Period 36 months from date of purchase

    SUPPORT FILES

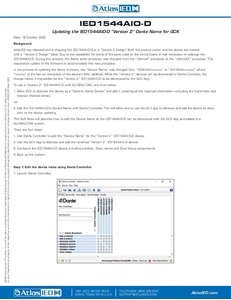

    IED1544AIO-D V2 Update for GCK Tech Note (4 pages) IED1544AIO-D V2 Update for GCK Tech Note (4 pages)

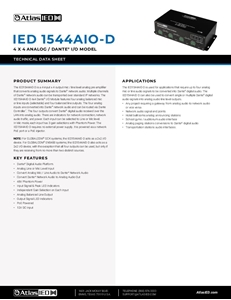

    IED1544AIO-D Data Sheet IED1544AIO-D Data Sheet

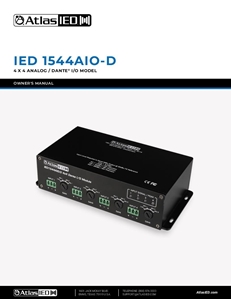

    ATS005685_C IED1544AIO-D Owners Manual ATS005685_C IED1544AIO-D Owners Manual
