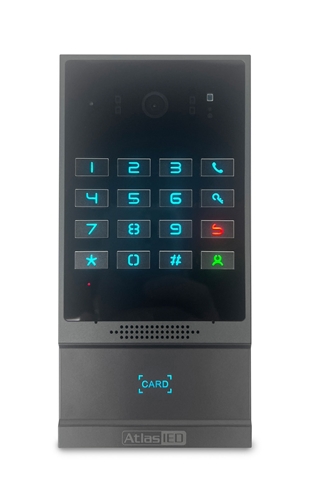

PoE IP Commercial Grade Video Doorbell

IP-DB

Availability: In stock
Your Price:
$999.99
  • CE
  • FCC
  • PoE enabled
  • SIP Compatible
  • G.711 Capable
  • G.722 Capable
  • IP66
  • 2MP Camera
    DESCRIPTION

    The AtlasIED IP-DB is a VoIP commercial grade doorbell built for deployment in the harshest environments. Equipped with a 2MP camera, backlit keypad, RFID reader, and magnetic door lock control relays the IP-DB fits perfectly into the IPX Unified Communication ecosystem. When paired with the IP-CONSOLE-GH the IP-DB can provide a video and audio communication for guests seeking access to the facility.

    The architecture of the IP-DB features sturdy all metal construction that is designed to withstand both harsh weather and vandal activity. The IP-DB is built to the highest standards and is designed to pass the test of time.

    The IP-DB is equipped to handle low light conditions when they occur. On board IR LEDs allow the camera to retain its high-quality performance and visitors can use the provided keypad as they are fully backlit.

    With multiple ways for users to unlock doors the IP-DB is the perfect way to integrate with existing systems. For customers that utilize RFID for door access the IP-DB is setup to seamlessly integrate with existing RFID cards. If pin codes are the tool of choice for securing door access the IP-DB supports this as well.

    The IP-DB is a great fit for any InformaCast system that needs the addition of a higher level of door security and communication. With a sleek design that is user friendly and easy to install, the IP-DB is a must have for most projects.


    Features
    • Network Features

      • Dynamic or Static IP Address
      • IEEE 802.3 10/100/1000 Base-T Ethernet
      • IEEE 802.3af Compliant
      • Dual Bridged Port for PC Bypass
      • Built-in 2.4G / 5G Wi-Fi
      • IPv6
    • Audio Codec Support

      • G.711 u-law / a-law (16kbit/s)
      • G.722 Wideband Audio (64 kbits/s), Opus
    • Video Codec Support

      • H.264
    • Static Configuration

      • HTTP GUI for Static Configuration
    • Additional Features

      • 2MP CMOS camera with IR LEDs for low light use
      • Support for up to 10,000 RFID cards
      • Full duplex calling with AEC
      • Compatible with most major call platforms (e.g., Asterick®, Broadsoft®, 3CX®, Metaswitch®, Elastix®, Avaya®, and others)
      • Direct to IPX communication using multi-cast
      • 2x output control relays
      • ONVIF compatible
      • Backlit keypad

    SPECIFICATIONS
    General Purpose Input / Output
    Relay Outputs 2
    Relay Output Type Normally Open / Normally Closed
    Max DC Voltage / Current 30VDC / 2A
    Max AC Voltage / Current 125VAC / 0.5A
    General Purpose Inputs 3
    Input Type Dry Contact
    Audio
    Microphone / Speaker Frequency Response 80Hz - 7kHz (Minimum Range)
    Sampling Rate 16kHz
    Supported Narrow Band Codecs G.711A/U, G.729A/B, iLBC, G.723.1, G.726-32K
    Supported Wide Band Codecs G.722 and Opus
    Video
    Codecs H.264
    Video Call Resolution Main stream 1080P@30fps / Sub stream VGA@30fps.
    Viewing Angle Diagonal 141°, Horizontal 120°, Vertical 60°
    Weights and Dimensions
    Dimensions (HxWxD) 7” x 3.46” x 1.42” (177mm x 88mm x 36mm)
    Shipping Dimensions (HxWxD) 2.5” x 8.875” x 4.875” (63.5mm x 222mm x 120mm)
    Weight 1.28lb (.58kg)
    Shipping Weight 1.7lb (.77kg)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES
    IP-DB Data Sheet IP-DB Data Sheet
    IP-DB Quick Start Guide IP-DB Quick Start Guide
