IP Addressable Single Zone Interface with Balanced Line Level Output

IPS-ZC1

    DESCRIPTION

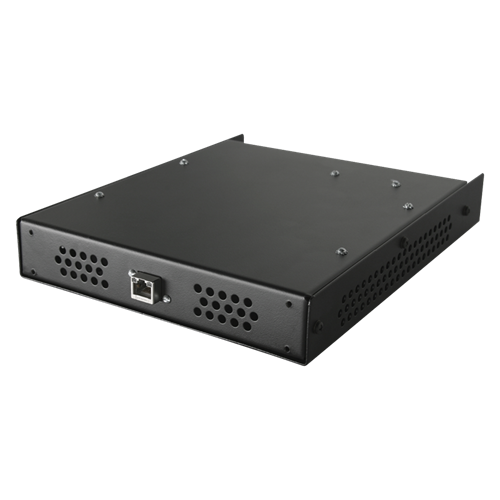

    Models IPS-ZC1 and IPS-ZC2 from AtlasIED consist of a factory assembled PCB control board housed in a rugged and compact 1RU chassis. The unit provides the same addressable end point functionality as an IP speaker or IP phone with the convenience of line level audio output. This line level output is perfect for use with Atlas AA, PA, or CP series amplifiers to power large zones of traditional 25V, 70.7V, or 100V Atlas speaker or paging horn assemblies.

    The unit receives 12VDC power provided by IEEE 802.3 AF compliant POE switches (local a href="/pn/IPS-PSU">IPS-PSU 12VDC – 18VDC PSUs may also be used instead of POE switches). Network interconnection is via a board mounted female RJ-45 connector on the front panel.

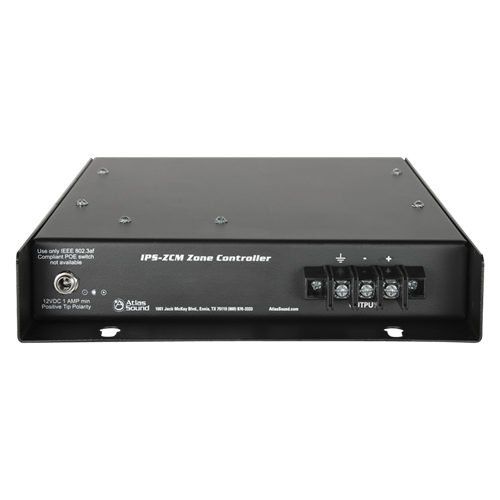

    Output is balanced line level via a 3 pole terminal block on the rear panel.


    Features

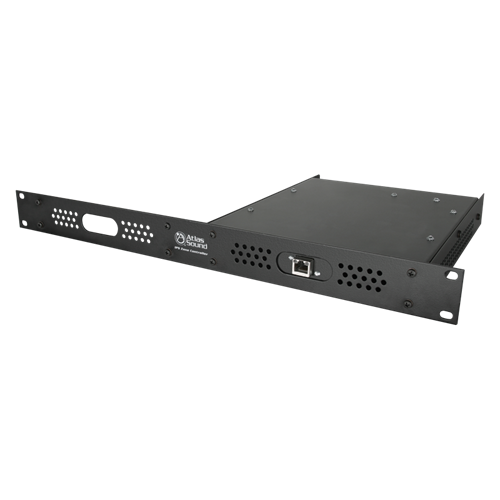

    • Modular 1RU Design Allows for Easy Rack Mounting and Cable Access
    • Systems Available with Single or Dual Module Configurations
    • Use with Berbee InformaCast® software, Cisco® POE networks & Cisco IP Telephones to create extremely versatile paging and messaging systems
    • Balanced Line Output to Drive Atlas CP, PA, or AA Series Amplifiers

    SPECIFICATIONS
    Height 1 3/4" (4.445 cm)
    Safety Listed 60950-1
    Width 19" (48.26 cm)
    Depth 8 3/16" (20.828 cm)
    Depth 80 3/16" (20.828 cm)
    Shipping Weight 4.50 lbs (2.04 kgs)
