16-Channel USB Dante Network Audio Device

IPUSBD-16

Your Price:
$2,685.99
  • Dante enabled
  • GCK Optimized
    DESCRIPTION

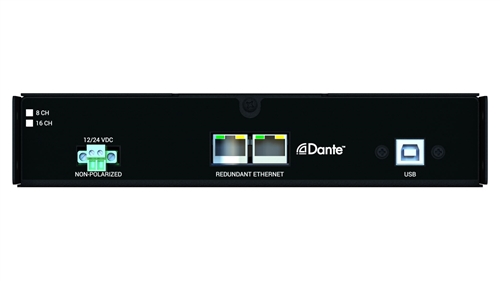

    The IPUSBD-16 Dantenetwork audio device providing 16x16 input/output channels of digital audio to/from a USB port of a host computer to Ethernet. The Ethernet connection is auto-negotiated 100/1000MB via redundant RJ-45 ports. The USB port is compatible with USB 1.0 and 2.0 standards, and will work in USB 3.0 ports. USB 2.0 or higher port is required for more than 16x16 channels simultaneously, due to bandwidth limitations of USB 1.0.


    Features
    • Supports Audinate’s Dante™ Digital Audio

    • Compatible with AtlasIED GLOBALCOM.IP® Systems and 3rd Party DanteDevices

    • Provides Redundant Ethernet Ports

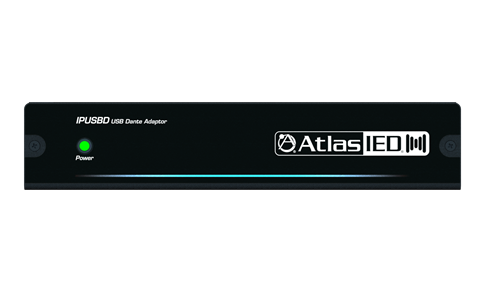

    • LED Indicator for Power

    • Can Be Powered from 12V or 24V DC Supply


    SPECIFICATIONS
    Voltage 12V or 24VDC
    Power Consumption 3W MAX
    Height 1.75" (44mm)
    Width 8.5" (216mm)
    Depth 5" (127mm)
    Warranty Period 36 months from date of purchase

    SUPPORT FILES
    IPUSBD Driver v4.45.0 IPUSBD Driver v4.45.0
    IPUSBD-8 and IPUSBD-16 Installation Instructions (12 pages) IPUSBD-8 and IPUSBD-16 Installation Instructions (12 pages)
    IPUSBD-8 and IPUSBD-16 Data Sheet (4 pages) IPUSBD-8 and IPUSBD-16 Data Sheet (4 pages)
