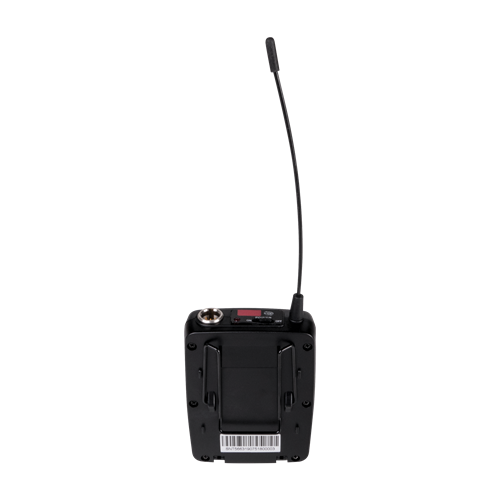

Belt Pack Wireless Microphone Transmitter

MWBPT

Availability: In stock
Your Price:
$301.99
    DESCRIPTION

    The AtlasIED MWBPT wireless belt pack transmitter is the ideal choice for a variety of applications ranging from classrooms and conference rooms to lecture halls and live presentations. The MWBPT works with either the MWOEM headset microphone or MWLM lavalier microphone. High and low impedance gain adjustments are included to ensure optimal pickup for a variety of applications. The unit is powered by either standard AA batteries or with NiMH rechargeable batteries (sold separately) allowing for up to 16 hours of usage. The unit operates on the UHF band and syncs to the wireless receiver, AtlasIED model MWRCVR, for connection to local amplification. The integrated LCD displays critical information regarding channel, frequency, and battery level.


    Features
    • Multi-Function Lcd Display For Channel / Frequency, Sensitivity, Battery Status Indicator, Alkaline / NiMH Battery Selection

    • Patented Technology for 2-Way Data Transfer Between Transmitter and Receiver

    • 100 Frequencies Available Through the 25MHz Signal Band

    • 35mW Maximum Transmission Power

    • Supports Multiple Microphone Types As Well As 1⁄4 Cable Connection

    • Requires 2 AA Batteries to Operate

    • Up to 16 Hours Operating Time

    • Standard 4-Pin Mini XLR Connector

    • 1⁄4 Wave Whip Antenna

    • High and Low Impedance Gain Controls

    • Detachable Belt-Clip


    SPECIFICATIONS
    Frequency Range UFH 566MHz - 585.8MHz
    Switching Bandwidth 20Mhz
    Switchable Frequencies 100
    RF Power Output < 35mW
    Spurious Emission > 60dB Below Carrier
    Dynamic Range > 110dB
    Display Type LCD
    THD < 0.5%
    Dimensions 3.31" L x 2.52" W x 0.91" H (84mm x 64mm x 23mm)
    Weight 0.17lbs (0.076kg)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES

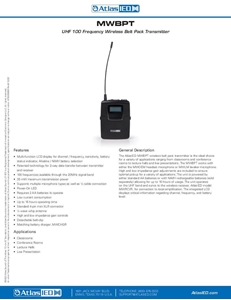

    MWBPT Data Sheet (3 pages) MWBPT Data Sheet (3 pages)

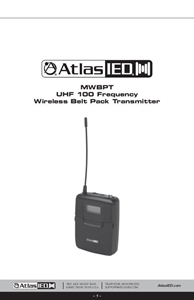

    MWBPT Owners Manual (12 pages) MWBPT Owners Manual (12 pages)
