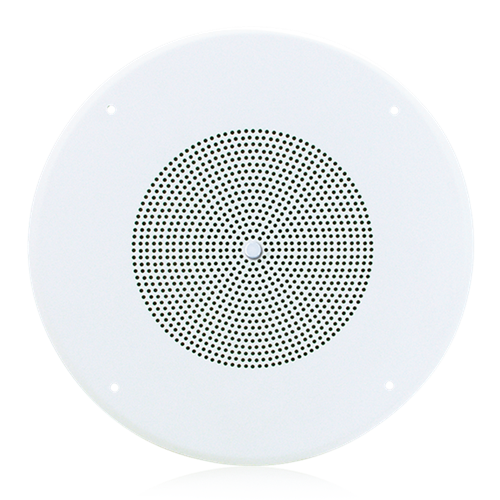

8" Dual Cone In-Ceiling Speaker with 25V/70V 2-Watt Transformer and 62-8 Baffle

SD722W

  • CETL
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

    The SD722W combines a world-renowned Atlas 8" commercial duty speaker with the industry's most accepted grille design to create a very aggressively priced ceiling speaker solution.

    Features
    • Voiced to Closely Match Frequency Response of Atlas C Series Drivers
    • 25V/70.7V Operation with ¼. ½. 1 & 2 watt Transformer Taps
    • 62-8 Style White Grille Complements a Wide Variety of Atlas Enclosures and Mounting Options
    • 6 Pack Master Carton Ordering Minimizes Construction Site Cardboard Waste
    • 5 Oz Magnet
    SPECIFICATIONS
    Speaker Type Treated Paper
    Sensitivity 97dB Average
    Frequency Response 55Hz - 8kHz
    Safety Listed 1480, 2043
    Power Taps .25, .5, 1, and 2W
    Dispersion 105° (2kHz Octave Band, -6dB Points)
    Depth 2.875" (73.025mm)
    Diameter 8.125" (206.375mm)
    Shipping Weight 5.28 lbs. (2.39kg)
    Magnet Weight 5oz
    SUPPORT FILES

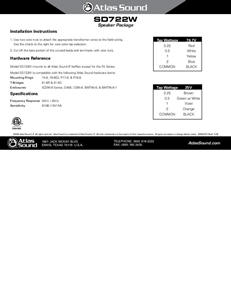

    SD722W Instal Sheet (1 page) SD722W Instal Sheet (1 page)
    View | Download

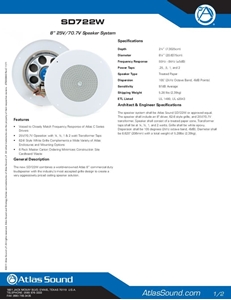

    SD722W Datasheet (2 pages) SD722W Datasheet (2 pages)
    View | Download
