EN54-24 Certified 6.5" 2-Way All Weather Speaker with 32-Watt 70V/100V Transformer in Black or White

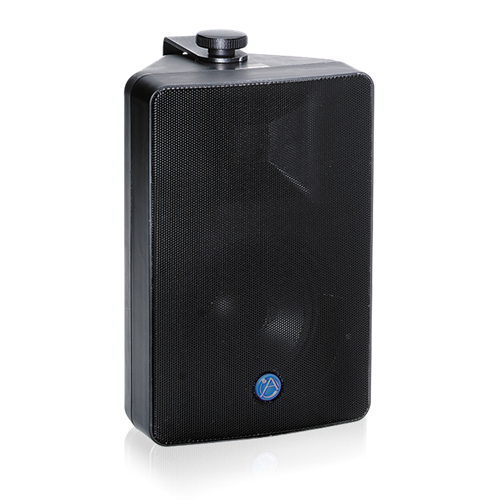

SM63T-B Front Vertical
EN54-24 Certified 6.5" 2-Way All Weather Speaker with 32-Watt 70V/100V Transformer (Black)
SKU: SM63TEN-B
Availability: In stock
Your Price:
$357.99/each
Must purchase in multiples of 2

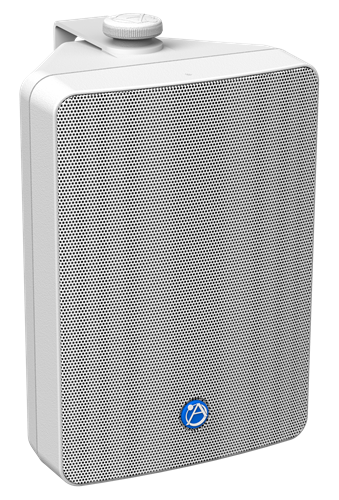

SM63T-WH Front Vertical
EN54-24 Certified 6.5" 2-Way All Weather Speaker with 32-Watt 70V/100V Transformer (White)
SKU: SM63TEN-WH
Availability: In stock
Your Price:
$357.99/each
Must purchase in multiples of 2
  • EN54-24 Certified
  • 4OHM8OHMCAPABLE
  • IP33C Rated
  • 120°H x 120°V Coverage
  • Non-Powered
  • 70V100VCAPABLE
DESCRIPTION

Environment-resistant EN54-24 certified SM Series loudspeaker systems offer quality sound reproduction and contemporary styling in a compact enclosure. System components consist of a highly efficient woofer section and ferrofluid cooled, polymer reinforced linen composite dome high frequency device. This design provides smooth, even sound coverage (120° conical). The high frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High frequency component protection is provided by the AtlasIED PolyGuard™ protection circuit. The SM63TEN includes an internally mounted 32-Watt 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 8Ω operation.


Features
  • 1" Ferrofluid™ Cooled Dome Tweeter
  • 100HR Salt Spray Test Per ASTM B117
  • All ¼"-20 Hardware Inserts Allow Easy Integration of "Off The Shelf" Security Hardware
  • Atlas Sound POLYGUARD™ High Frequency Circuit Diverts Damaging Transient Signals to Protect the Tweeter
  • Available in Black or White
  • Color Matched Heavy-Duty Zinc Chromate Plated & Powder Coated "C" Bracket (Included)
  • Compact, Two-Way Loudspeaker Systems for Exceptional Performance in Sound Reinforcement Systems
  • Five-Year Warranty
  • Weather-Resistant Construction For Year-round Indoor Use, (Not EN54-24 certified for outdoor use), UV-resistant PC / ABS, Injection Molded, Weatherproof Enclosure, Powder Coated Aluminum Grilles and all Brass Hardware Inserts
  • Highly Efficient 6.5" Polypropylene Woofer

  • EC UK Certificate of constancy of performance to EN54-24
  • UK UK Certificate of constancy of performance to EN54-24
  • OMNIMOUNT™ Compatible

SPECIFICATIONS
Speaker Type Surface Mount
Power Taps 4, 8, 16, 32 & 8Ω bypass
Sensitivity 88.5dB
Sensitivity (EN54-24) 72dB
Frequency Response 104Hz - 20kHz
Height 10.27" (26.09 cm)
Width 7.24" (18.39 cm)
Depth 6.68" (16.97 cm)
Shipping Weight 6.55 lbs (2.97 kgs)
Warranty Period 60 months from date of purchase

SUPPORT FILES
SM63TEN Datasheet (5 pages) SM63TEN Datasheet (5 pages)
SM63TEN CAD Drawing (pdf) (1 page) SM63TEN CAD Drawing (pdf) (1 page)
SM63TEN CAD Drawing SM63TEN CAD Drawing
SM63TEN CLF Data SM63TEN CLF Data
Declaration of Performance (DoP) _3005-EN54-24 UK & CE for SMxxTEN (4 pages) Declaration of Performance (DoP) _3005-EN54-24 UK & CE for SMxxTEN (4 pages)
SM63T EASE DATA SM63T EASE DATA
