8" In-Ceiling Speaker with 4-Watt 25V/70V Transformer with T62-8 Torsion Baffle

TFD72WC

Availability: In stock
Your Price:
$70.99
  • UL Listed
  • CUL
  • BAA
  • TAA
  • HYFIDROPHOBIC_OPTIONAL
  • 70V100VCAPABLE
    DESCRIPTION

    The TFD72WC is a cost-effective 8" dual-cone speaker assembly which delivers wide frequency response for general purpose voice and music reproduction.

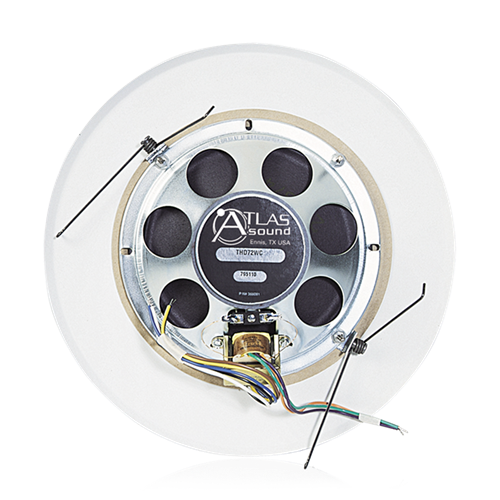

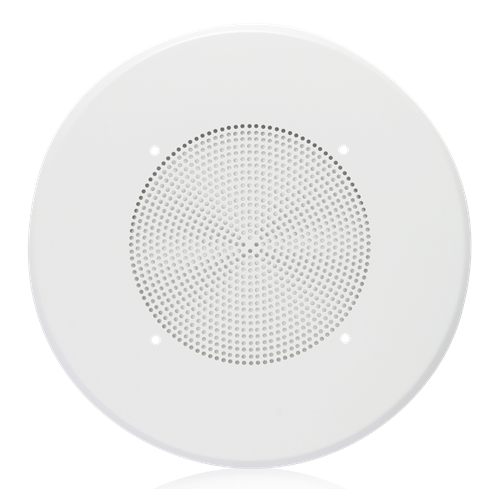

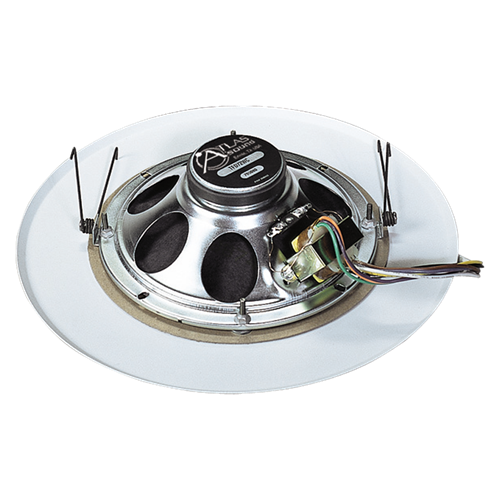

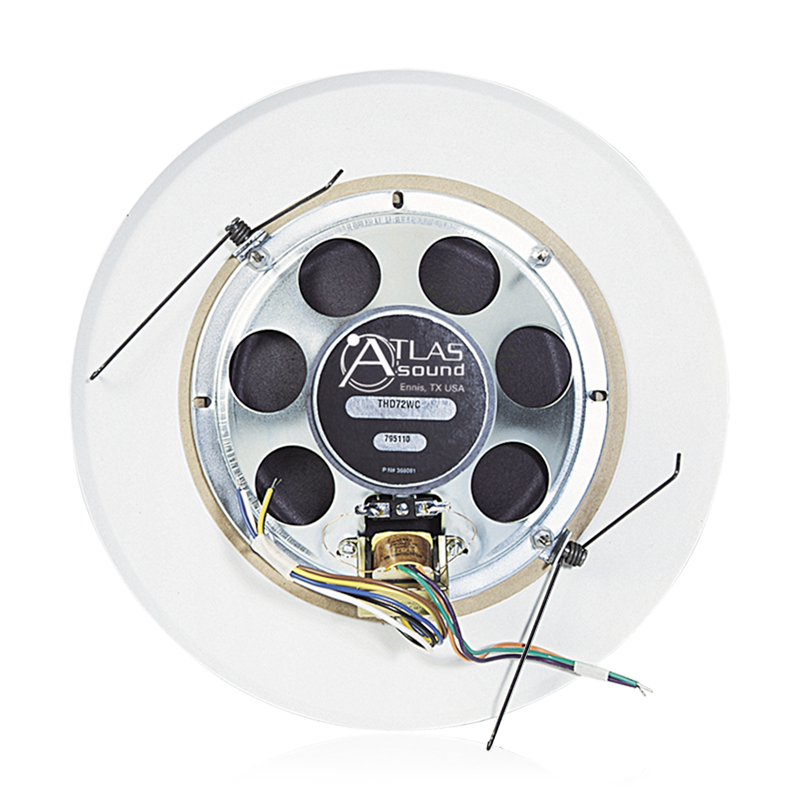

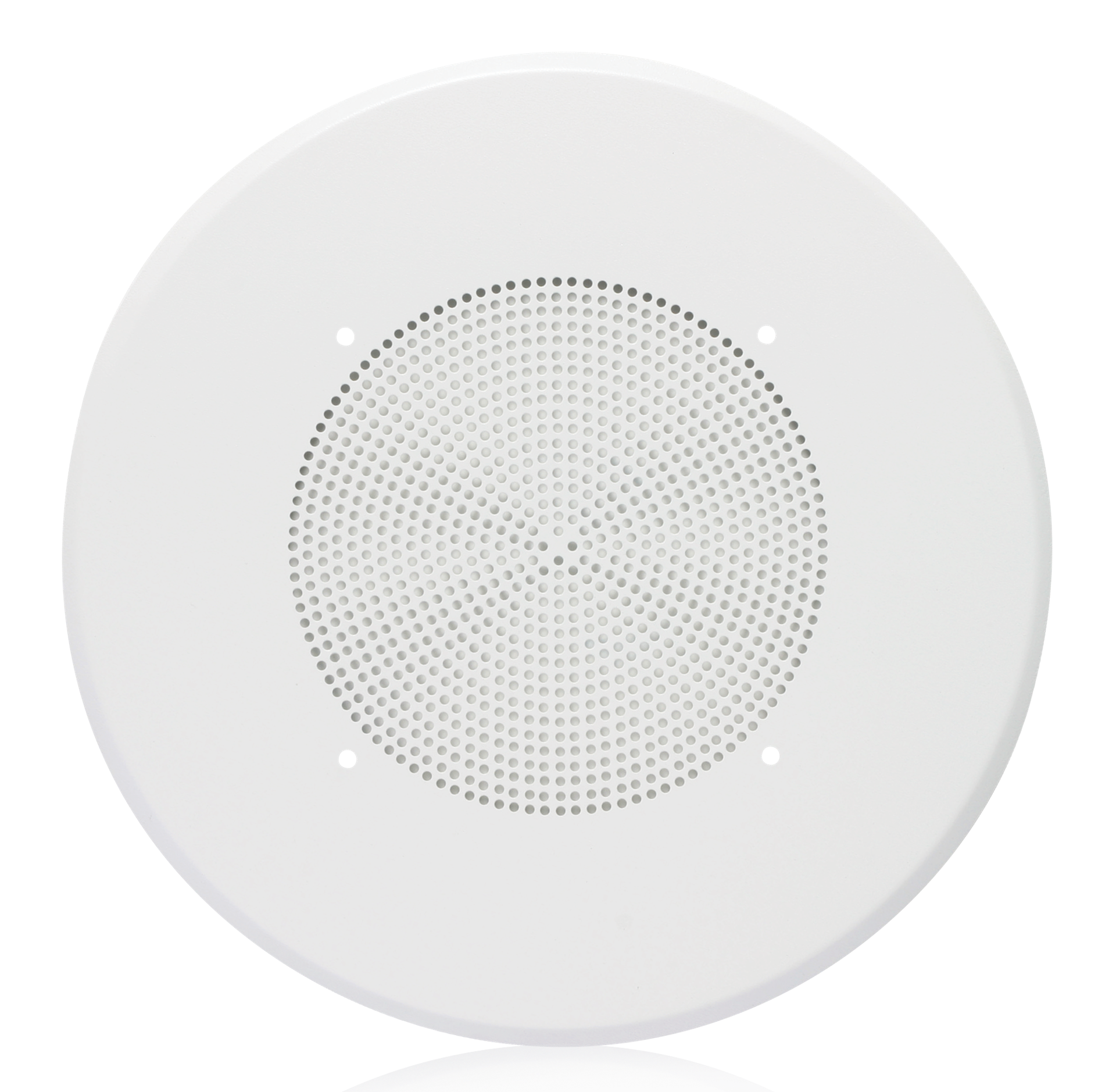

    Unit is shipped complete with torsion mount grille and 25/70.7-volt transformer factory wired to reduce field installation time and expense.

    The TFD72WC will accept optional protective enclosures and mounting accessories to meet installation and code requirements.


    Features
    • Attractive White Finish
    • Easy to Order Speaker/Transformer/Torsion Grill Assembly
    • Suited for Any Commercial Paging or BGM Application

    SPECIFICATIONS
    Frequency Response 100Hz - 10kHz
    Sensitivity 96dB Peak, 93dB Average
    Power Taps .25, .5, 1, 2, & 4 Watts
    Speaker Type Treated Paper
    Dispersion 105°
    Depth 2 5/8" (6.6675 cm)
    Diameter 8" (20.32 cm)
    Shipping Weight 4.00 lbs (1.81 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    FD/EZFD & HD/EZHD Series Datasheet (2 pages) FD/EZFD & HD/EZHD Series Datasheet (2 pages)
