2 x 8 Distribution Amplifier

TSD-DA28

Availability: In stock
Your Price:
$346.99
  • Power Supply Sold Separately
  • CE
    DESCRIPTION

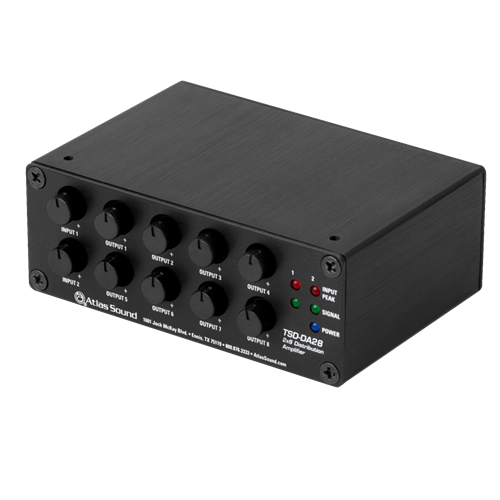

    The TSD-DA28 2x8 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows two independent balanced line level source inputs to be distributed to eight isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities.

    Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device. All I/O is via Phoenix style connectors for installation convenience and inputs may be easily paralleled for 1 in / 8 out configuration.

    Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements.  This unit has a power requirement of 80mA so any of the available TSD power supplies can be used with the unit. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.




    Features
    • Two (2) Balanced Line Inputs
    • Eight (8) Isolated Balanced Line Outputs

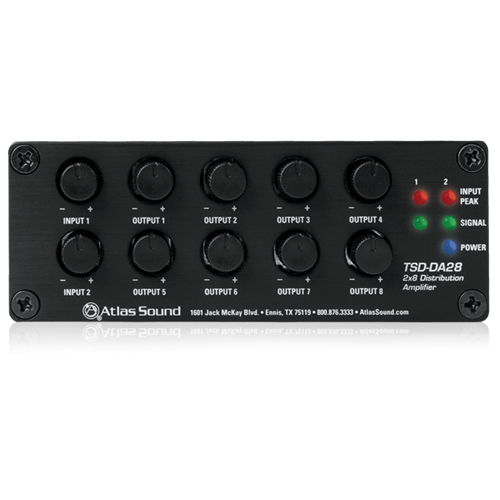

    • Signal & Peak Indicator LED's for Each Channel
    • High Gain Output for Driving Long Balanced Lines
    • Separate Ground Connections

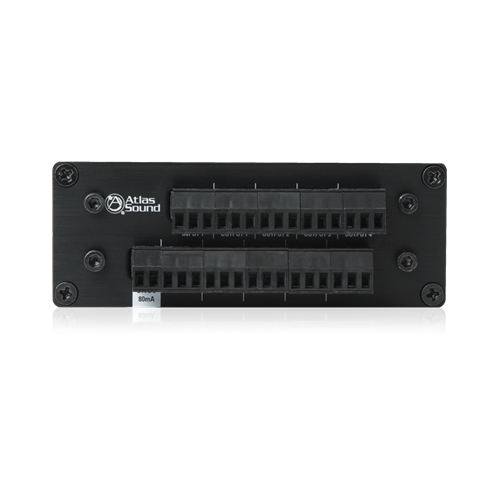

    • Removable Phoenix Style I/O Connectors
    • Security Covers Included for All Front Panel Controls
    • Energy Efficient
    • Power Supply Sold Separately

    SPECIFICATIONS
    Frequency Response 20Hz - 20kHz
    Input impedance 10KΩ Balanced, 5KΩ Unbalanced
    Output impedance 300Ω Balanced, 150Ω Unbalanced
    Signal to Noise Ratio 90dB
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 2.5" (6.35 cm)
    Weight 6oz., .165kg
    Voltage Compatibility 24V
    Warranty Period 36 months from date of purchase

    SUPPORT FILES
    TSD-DA28 Datasheet (3 pages) TSD-DA28 Datasheet (3 pages)
    TSD Series CAD Drawing TSD Series CAD Drawing

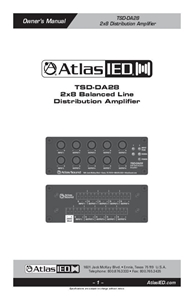

    TSD-DA28 Owners Manual (12 pages) TSD-DA28 Owners Manual (12 pages)

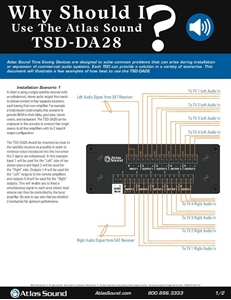

    TSD-DA28 Application Guide (2 pages) TSD-DA28 Application Guide (2 pages)
