High / Low Level Converter

TSD-TXHL

Availability: In stock
Your Price:
$79.99
  • Non-Powered
    DESCRIPTION

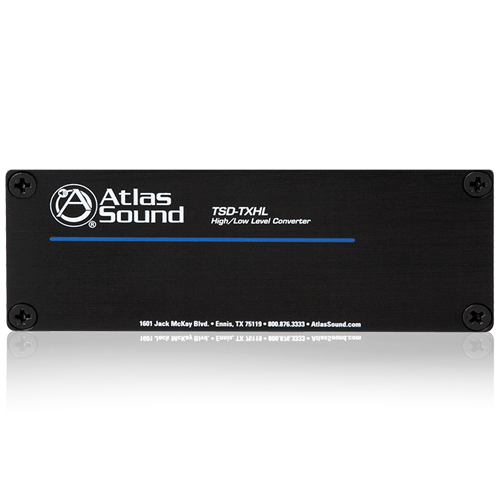

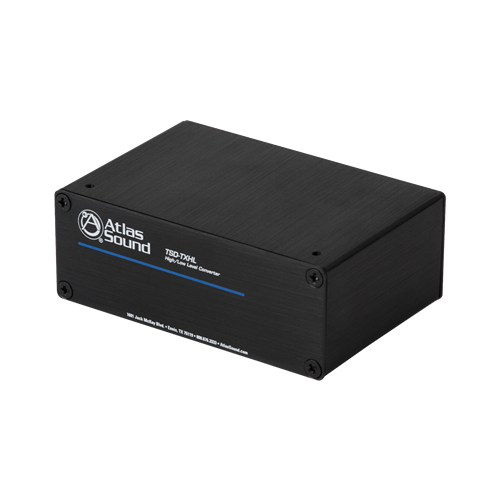

    The TSD-TXHL is a high to low level converter designed to interface with 4Ω/25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices. The TSD-TXHL allows easy expansion of zones without the need for dedicated wiring to remote locations. The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. An output level control allows for trim adjustment to best match the remote amplifier (or other device) input sensitivity. The TSD-TXHL works perfectly in conjunction with AtlasIED's CP and PA series amplifiers.


    Features
    • Tap into 4Ω/25/70/100V Speaker Lines to Interface with Remote Amplifiers
    • Input Gain Adjustment Switch
    • Trim Level Control
    • Isolated Transformer

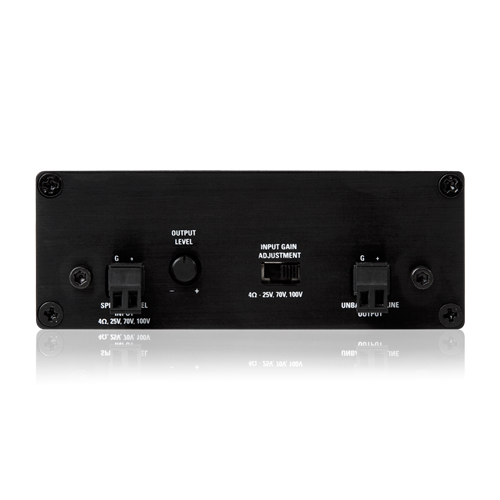

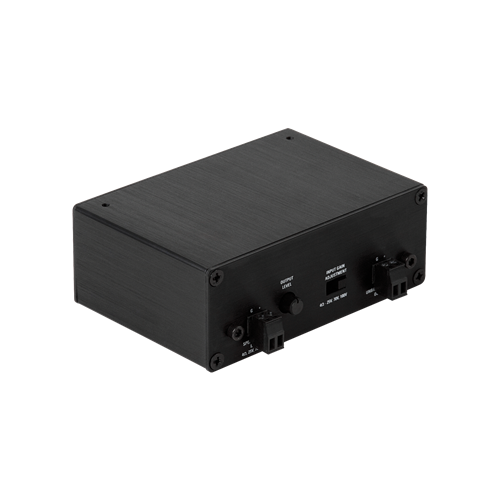

    • Removable I/O Connectors
    • No External Power Required

    SPECIFICATIONS
    High Level Input Amplifier Speaker Outputs 4Ω, 8Ω, 25V, 70V and 100V
    Output impedance 600Ω Unbalanced
    Line Output Level Max Output 500mV
    Frequency Response 40Hz - 25kHz
    Height 1.5" (3.81 cm)
    Width 4" (10.16 cm)
    Depth 2.5" (6.35 cm)
    Weight 6oz., .165kg
    Warranty Period 36 months from date of purchase

    SUPPORT FILES
    TSD Series CAD Drawing TSD Series CAD Drawing

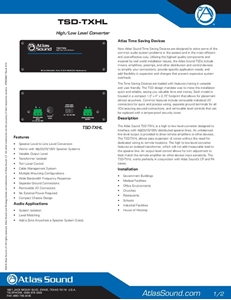

    TSD-TXHL Datasheet (3 pages) TSD-TXHL Datasheet (3 pages)

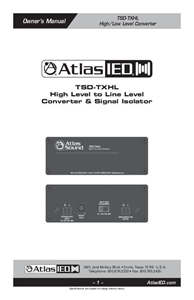

    TSD-TXHL Owners Manual (12 pages) TSD-TXHL Owners Manual (12 pages)

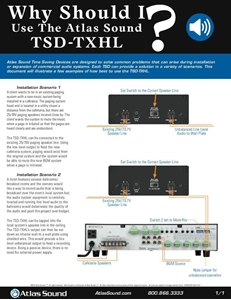

    TSD-TXHL Application Guide (1 page) TSD-TXHL Application Guide (1 page)
