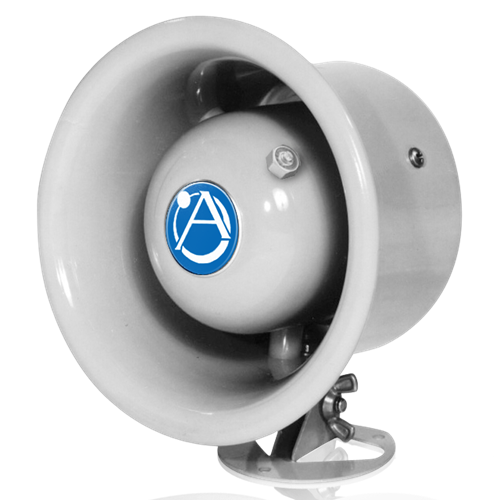

Small Format Weather Resistant Horn Speaker with 70.7V 7.5W Transformer

WR-5AT

Availability: In stock
Your Price:
$81.99
  • IP55
  • TAA
    DESCRIPTION

    Cost-effective reflex speaker Model WR-5AT is 7.5 watt unit, for use where environment resistance and small size are important criteria in equipment selection for localized sound distribution. A specially engineered reflex housing enhances frequency response and optimum efficiency of the cone speaker.

    Weatherproof treatment and construction allows flexibility and dependable performance in indoor and outdoor installations. Model WR-5AT is equipped with a 70.7 volt transformer with screwdriver adjustable watts / impedance switch. Housing is constructed of heavy-gauge spun aluminum with durable light epoxy finish.

    Learn more about the importance of protecting paging horns from low frequency damage and view the TSD-HF11 unit designed specifically to protect horns from low frequency damage.


    Features
    • 7.5 Watts for Localized or Area Communications
    • Delivers Extended Frequency Response for Pleasing Sound Reproduction
    • Economy Loudspeaker for Paging, Music and Signaling
    • Withstands Indoor and Outdoor Environments

    SPECIFICATIONS
    Frequency Response 375Hz - 10kHz
    Sensitivity 97dB 1W/1m
    Power Taps .65, 1.25, 2.5, 5.0, 7.5 Watts @ 70.7V
    Dispersion 95°
    Power Rating 7.5 Watts
    Depth 4 1/2" (11.43 cm)
    Diameter 6" (15.24 cm)
    Shipping Weight 2.00 lbs (0.91 kgs)
    Warranty Period 60 months from date of purchase

    SUPPORT FILES
    WR-5AT CAD Drawing WR-5AT CAD Drawing
    WR-5AT CAD Drawing (pdf) (1 page) WR-5AT CAD Drawing (pdf) (1 page)
    WR-5AT Datasheet (2 pages) WR-5AT Datasheet (2 pages)
