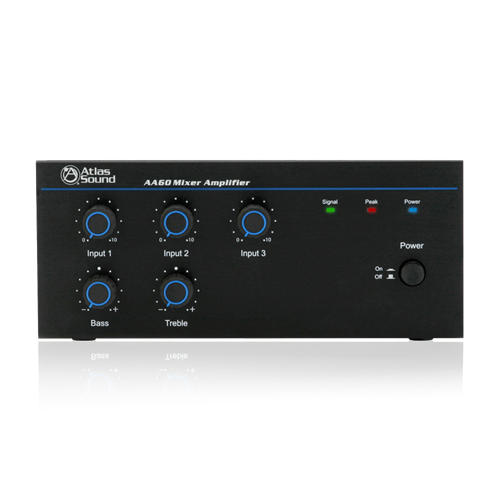

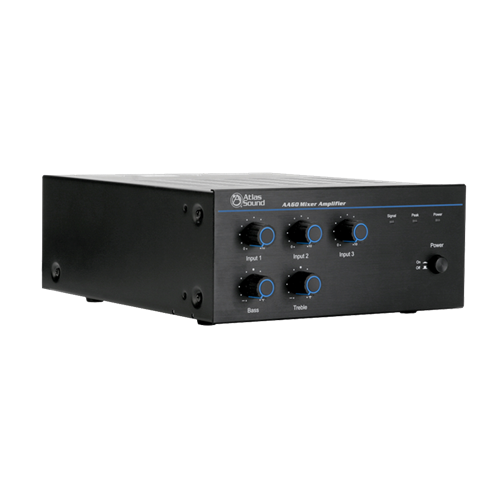

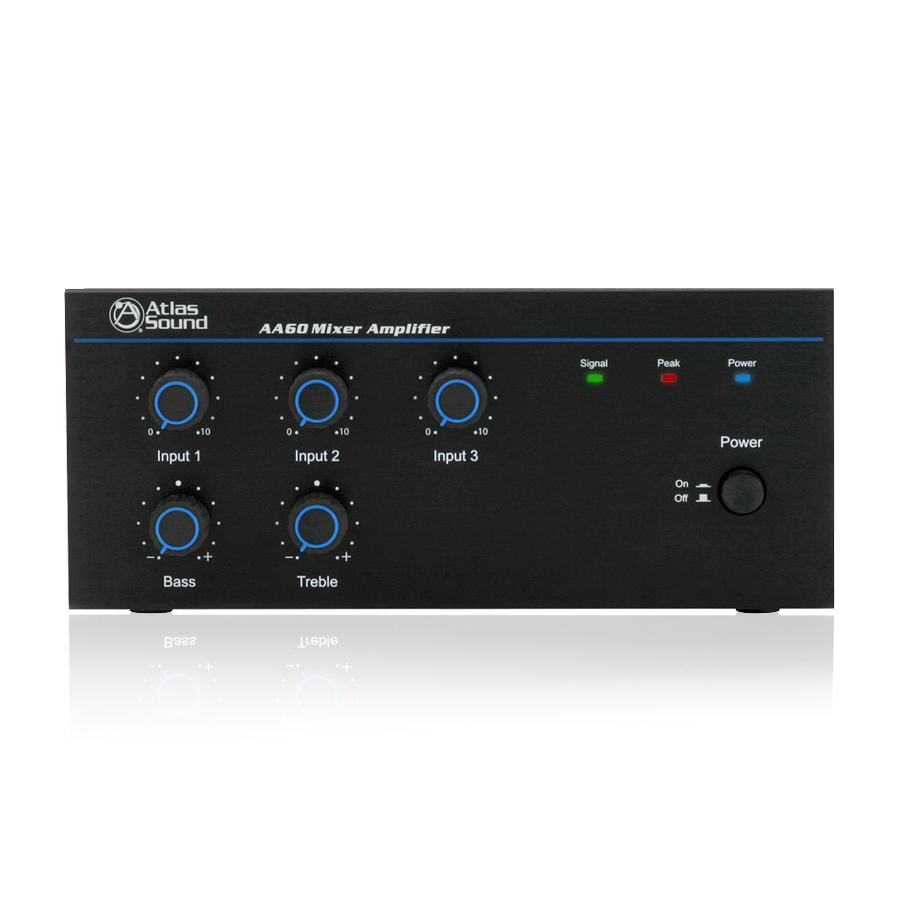

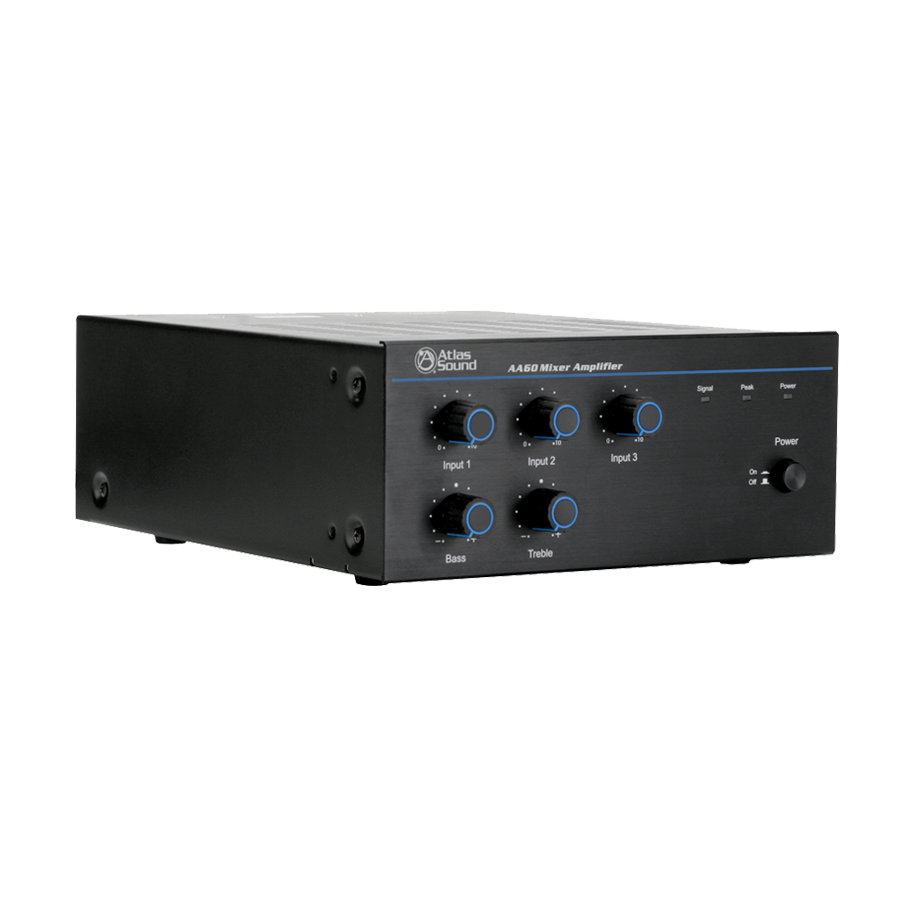

3-Input, 60-Watt Mixer Amplifier Mixer Amplifier

AA60

  • Mount Sold Separately
  • UL Listed
  • 4OHM8OHMCAPABLE
  • 70V / 100V Operation
    DESCRIPTION

    This item has been replaced by the AA60G.

    The AtlasIED AA60 is a 3 input channel mixer amplifier designed for distributed business paging and background music (BGM) systems, small to medium speech privacy systems, and in applications where music on hold (MOH) plus paging is required. With (1) mic/line input and (2) stereo line inputs, the AA60 will accommodate a variety of input sources including paging microphones, CD players, and digital music receivers. A dip switch selectable matrix allows the creation of a Zone 2 mix from any or all of the input sources for music or messaging on hold applications. 25V, 70.7V, and 8Ω outputs are provided.

    The output power of 60 Watts will match nicely with AtlasIED FAP, SM, SD, and GD series speakers. In fact, in an 11’ ceiling application, the AA60 will provide power for up to 200 SD72W speakers tapped at .25 Watts each while providing upwards of 84dB in the direct sound field at ear height


    Features
    • 1 Mic In w/Phantom Power
    • 2 Stereo Line Inputs
    • Dual Line Outputs
    • Pre Out/ Power In Patch
    • Remote and VOX Activated Mute
    • Route Any Source Combination or Entire Mix Bus to Zone 2 (MOH Out)
    • Special Low Cut Filter is 6dBu /octave at 400Hz and Also Bypasses Front Panel Bass Control to Allow Use with Paging Horns like APX40TN and AP-15T
    • 60 Watts of True Output Power
    • UL60065 Listed

    SPECIFICATIONS
    Frequency Response 50Hz - 20kHz
    Connector Type Phoenix and RCA
    Output Power 60 Watts
    Height 3.66" (94mm)
    Width 8.27" (210mm)
    Depth 10.87" (276mm)
    Safety Listed UL60065
    Voltage Compatibility 110V - 120V
    Warranty Period 36 months from date of purchase

    SUPPORT FILES

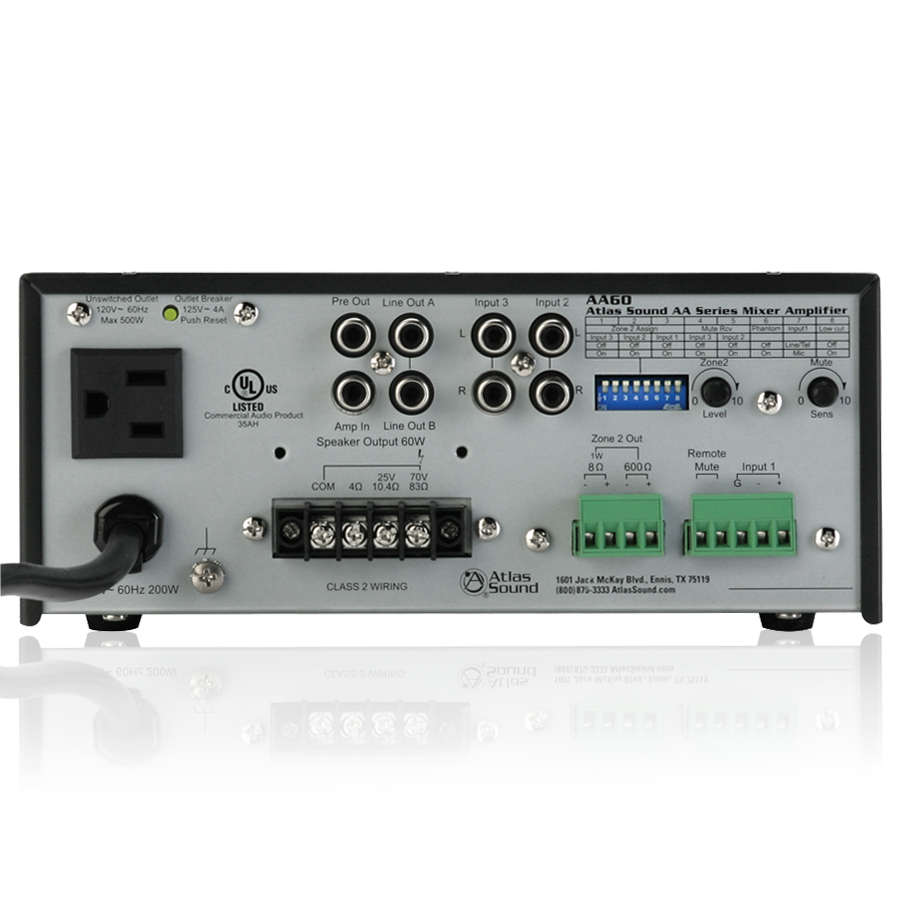

    AA_Amps_Front_Rear AA_Amps_Front_Rear

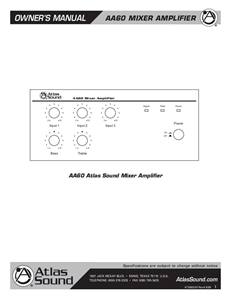

    AA60 Owners Manual (20 pages) AA60 Owners Manual (20 pages)

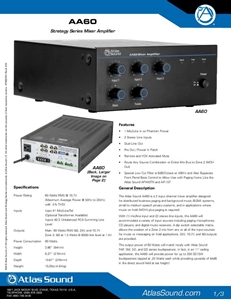

    AA60 Datasheet (3 pages) AA60 Datasheet (3 pages)
