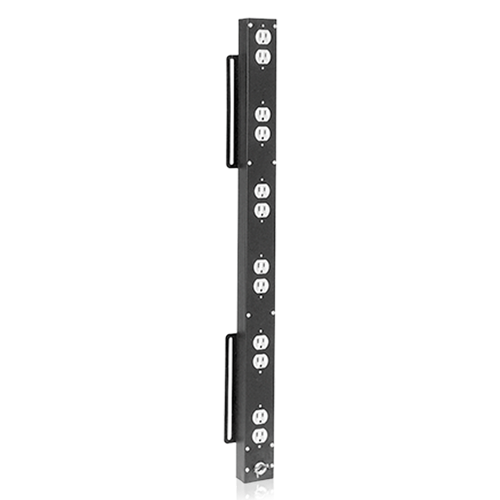

AC Outlet Strip 12 Outlets

ACS-1

    DESCRIPTION

    Outlet strip includes six grounded duplex outlets for installation in equipment cabinets with vertical panel space greater than 36 3/4". May be used in conjunction with AtlasIED fan assemblies and power panels to provide a complete cooling and AC power distribution system. Includes hardware. Finished in black epoxy. Dimensions are 36 3/4" L x 2 5/8" W x 1 5/8" H.


    Features
    • 15 Amp Outlet Rating
    • 6 ft. Power Cord
    • Finished in Black Epoxy
    • Includes Six Grounded Duplex Outlets for Installation in Equipment Cabinets with Vertical Panel Space Greater than 36-3/4"

    SPECIFICATIONS
    Current Rating 15A
    Light No
    Outlets 12
    Mounting Orientation Vertical
    Height 36 3/4" (93.35 cm)
    Width 2 5/8" (6.67 cm)
    Depth 1 5/8" (4.13 cm)
    Shipping Weight 7.00 lbs (3.18 kgs)
    Warranty Period 12 months from date of purchase

    SUPPORT FILES

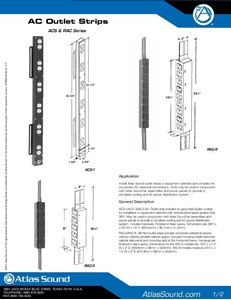

    AC Outlet Strips Datasheet (2 pages) AC Outlet Strips Datasheet (2 pages)

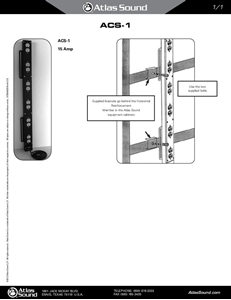

    ACS-1 Install Sheet (1 page) ACS-1 Install Sheet (1 page)
