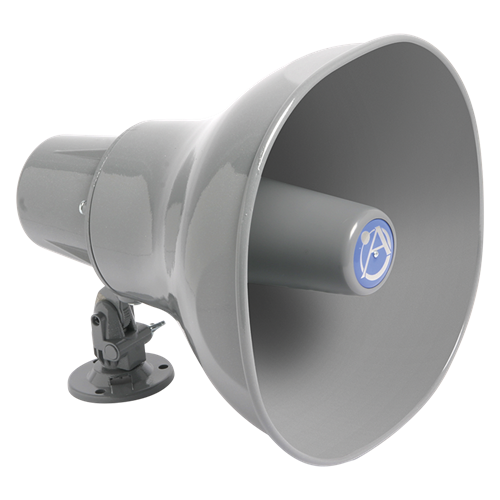

Omni-Purpose Speaker 30-W., w/Xfmr. (25V)

AP-30T-25

  • 70V100VCAPABLE
    DESCRIPTION

    The 8-ohm Model AP-30T-25 is a double re-entrant speaker which delivers 30 watts of continuous power handling, superior intelligibility and unparalleled audio conversion-efficiency. The AP-30-25 operates within a nominal frequency range of 300-12,000 Hz and offers a sensitivity of 126dB at rated power to provide clear voice and signal communication.
    The AP-30T-25 features an integral transformer to meet a variety of distributed system needs. Model AP-30T-25 includes a 25V only line transformer. Transformers are adjustable using AtlasIED's exclusive Vari-Tap® Connect Center which features a 7-position, watts / impedance selection switch. The labor saving Vari-Tap terminal is screwdriver adjustable and includes a protective cover with built-in strain relief.
    The trademarked square bell design signifies AtlasIED quality and reliability. The Omni-Purpose mounting bracket (included on all models) allows precise positioning in the vertical and horizontal planes with a single adjustment and provides for installation of the speaker on conventional surfaces or by strap-mounting to I-beams or pillars. AP Series speakers are U.S. made to assure superior service reliability. Weather-resistant construction is metal and matching ABS plastic with metal components finished in grey epoxy.


    Features
    • Environment Resistant for Outdoor & Indoor Use
    • Grey Finish
    • Omni-Purpose Mounting Bracket for Precise Positioning
    • Superior Intelligibility for Voice and Tone Signaling
    • Transformer equipped for 25V line applications
    • U. S. Trademark Design is World Recognized for Quality and Dependability
    • Wide Frequency Response for Optimum Sound Quality

    SPECIFICATIONS
    Height 11" (27.94 cm)
    Sensitivity 108dB
    Width 10" (25.4 cm)
    Depth 10 1/2" (26.67 cm)
    Shipping Weight 7.00 lbs (3.18 kgs)
    Frequency Response 300-12,000 Hz
    Dispersion 60°
    Power Rating 30 Watts
    Operating Temperature Range -40 to 70C

    SUPPORT FILES
    AP-30T Revit Drawing AP-30T Revit Drawing
    Omni-Purpose 30 Watt Horn Speaker Datasheet (2 pages) Omni-Purpose 30 Watt Horn Speaker Datasheet (2 pages)
