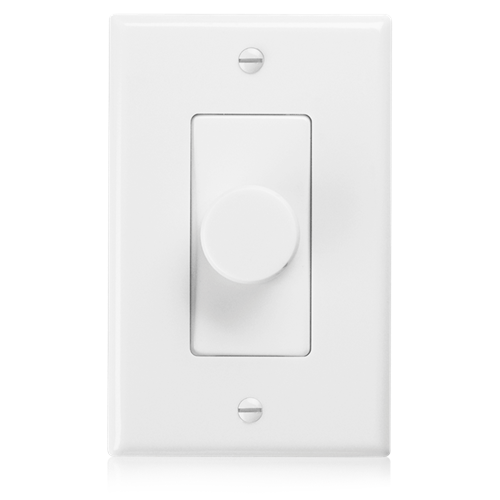

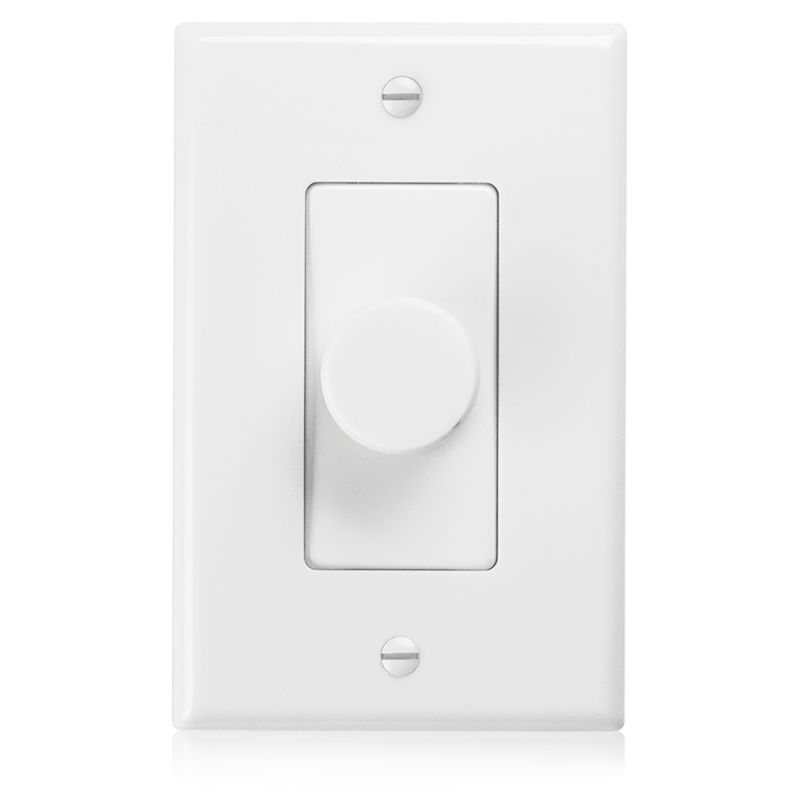

8-Ohm Stereo Attenuator with Decora-Style Plate

DAT8ST

  • TAA
    DESCRIPTION

    AtlasIED offers traditional autoformer controls to provide excellent stereo performance and maximum speaker-handling capability. The DAT8ST includes positive off and full-power pass through at the maximum setting. Contacts are make-before-break for smooth transition. This model with 8 Ohm impedance is suitable for residential stereo and voice-coil circuit application.

    Accepts up to 12-gauge speaker wire.


    Features
    • 50w Stereo 8Ω Volume Control
    • Single Gang
    • White & Ivory Decora Plates Included
    • Accepts Up to 12-Gauge Speaker Wire

    SPECIFICATIONS
    Plate Color White - Ivory
    Plate Size 1 gang
    Plate Type Decora
    Power Rating 50W 8 Ohms
    Total Attenuation 30 dB
    Speaker Wire Up to 12-gauge
    Height 4 1/8" (10.48 cm)
    Width 2 3/4" (6.99 cm)
    Depth 2 1/2" (6.35 cm)
    Shipping Weight 1.40 lbs (0.64 kgs)

    SUPPORT FILES
    8 Ohm / 70.7V Stereo Attenuator Datasheet (1 page) 8 Ohm / 70.7V Stereo Attenuator Datasheet (1 page)
    DAT8ST & DAT35ST70 Install Sheet (1 page) DAT8ST & DAT35ST70 Install Sheet (1 page)
