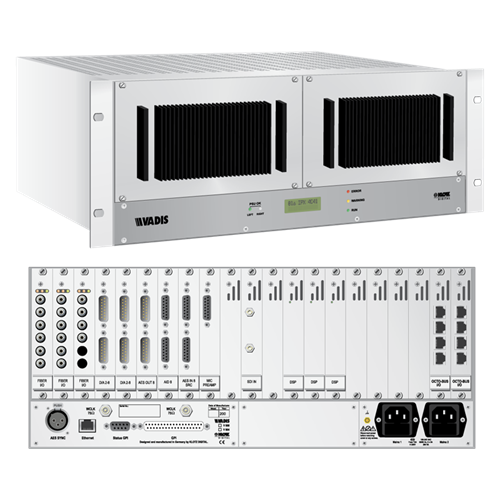

21 Card Slot Vadis Frame

V888

    DESCRIPTION

    The VADIS mainframe V888 is an audio router, which uses the modular architecture of the VADIS router line. The V888 can be used for the following:
    • Audio routing
    • Fiber optic distribution
    • Format conversion

    Each V888 mainframe can be equipped with up to twenty-one (21) audio/data interface and DSP plug-in cards, which can be combined freely.


    There are interface plug-in cards for the conversion of formats like:
    • Balanced analog audio
    • AES3
    • S/PDIF
    Further cards are available on request.
    The signal processing within the V 888 is carried out via DSP plug-in cards, which can be loaded with DSP software plug-ins used for the following:
    • Equalization
    • Dynamics
    • Mixing
    • Level adjustment
    • Level metering


    Features
    • 21 Slots for VADIS Plug-In Cards
    • Hot-Swap Function for the Exchange of Plug-In Cards During Operation
    • 24 Bit Digital Audio
    • 3RU 19" Rack Mount Housing
    • 8 GPI Inputs and Outputs

    SPECIFICATIONS
    Power Consumption 200 VA
    Number of Digital Channels 256
    Supply Voltage 85 VAC min., 264 VAC max
    Power Frequency 50 - 60 Hz
    Height 6.97" (177mm)
    Width 19" (482mm)
    Depth 16.73" (428mm)
    Weight 37.4 lb (17kg)
